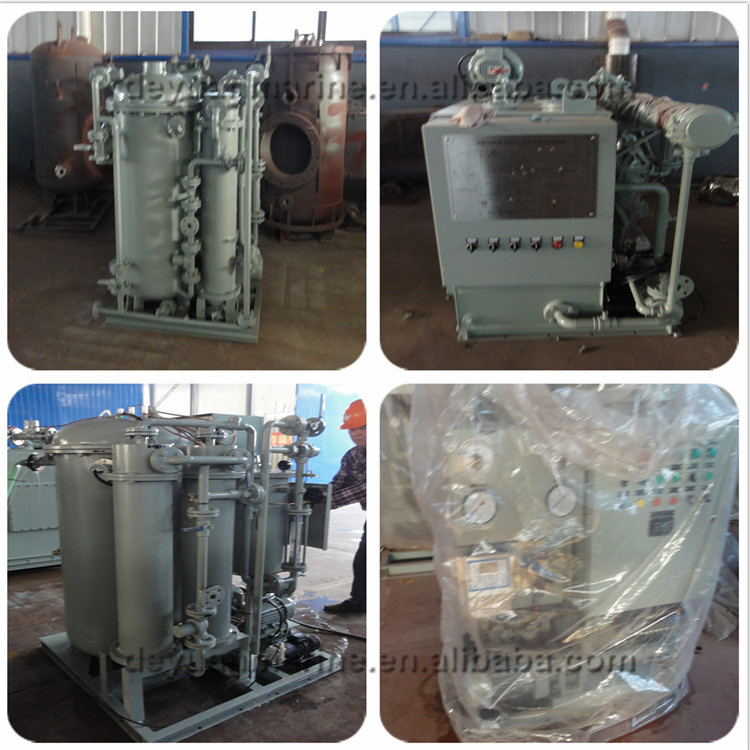

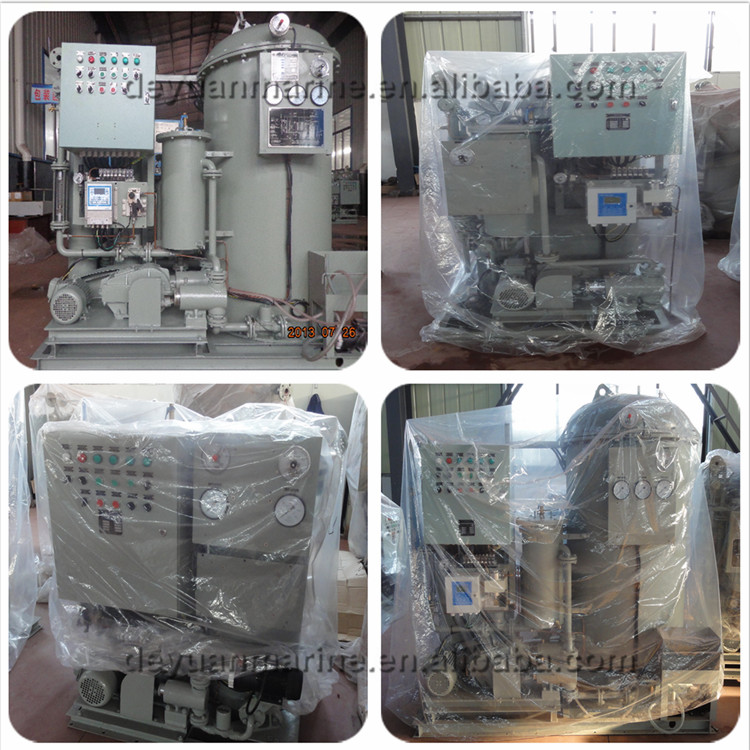

15 Ppm Marine Bilge Water Separators / Oily Water Separator for Ships

Inquire Add to Basket

  • DY140103

  • 0.25~5.0m3/H

  • Imo Mepc 107(49)

  • Water Pollution Control

  • Wooden Case

  • China

  • 15 Ppm Marine Bilge Water Separators / Oily Water

  • CCS, Ec, BV, ABS

  • Biology

  • Deyuan

  • ABS, GL, DNV, BV, CCS

  • 63072000

15 PPM Marine Bilge Water Separators / Oily Water Separator for Ships
15 Ppm Marine Bilge Water Separators / Oily Water Separator for Ships
15 Ppm Marine Bilge Water Separators / Oily Water Separator for Ships
15 Ppm Marine Bilge Water Separators / Oily Water Separator for Ships
1. Oily Water Separators capacity: 0.25M3/h~5.0M3/h .
2. Oil content in effluent water: Less than 15ppm .
3. Oily Water Separators certificate: CCS, EC, ABS, BV .
4. Oily Water Separators usage: Ships and vessels .
5. Oily Water Separators standard: IMO MEPC107(49) .
15ppm Bilge Separator (15ppm Bilge Separator) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water ≤ 15ppm. This separator is the high-tech newest product which can effectively dispose all kinds of fluids in bilge water including fuel oil, high-density residual oil and emulsion mixture combined with black ferric oxide and surfactant.

YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) of 9 types with the capacity from 0.25m3/h to 5.00 m3/h, The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT. The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT. This separator can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content from YWC can meet any standards of Environment Bureau in China.

YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) has been obtained the Type Approval of CCS, (GL) EC and IMO circular in July 2007. USCG is applying, will be coming soon in 2009.

Other related products we have:
15ppm Bilge water separator, 15ppm Bilge water alarm, marine sewage treatment plant, UV-sterilizer, rehardening water filter
Type DY-0.25 DY-0.5 DY-1.0 DY-1.50 DY-2.0 DY-2.5 DY-3.0 DY-4.0
Rated capacity
(M3/H)		 0.25/0.31 0.5/0.62 1.0/1.25 1.5/1.87 2/2.25 2.5/3.12 3/3.75 4.0/5.0
Power (kw) 0.75 1.10 1.10 1.10 2.20 2.20 3.0 3.0
Steam heater
M2/kw		 --- --- 1/30 1.5/45 2/60 2.5/75 3/90 4/120
15ppm
Bilge alarm		 Including Including Including Including Includig Including Includig Includig
Base #5
1000*600		 #6
1100*690		 #6
1050*1084		 #8
1100*1130		 #8
1900*1120		 #8
1700*1500		 #10
2400*
1700		 #10
2500*
2000
Dimension 1320 1460 1500 1660 1700 1900 2020 1820
Dry weight/
Net weight		 300/450 600/800 800/860 1060/1810 1260/
2260		 1500/
2800		 1800/
3200		 2100/
3900
Suitable for vessels 1000
DWT		 1000~5000 DWT 5~10
KDWT		 10~30
KDWT		 30~50
KDWT		 50~100
KDWT		 100~200
KDWT		 100~300
KDWT
