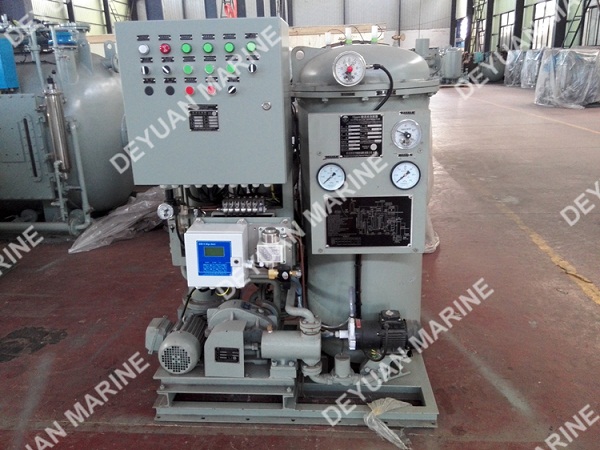

15 Ppm Oily Water Separators

  • DY140101

  • DEYUAN MARINE

  • China

  • 0.25m3/H~5.0m3/H

  • CCS, EC, BV, ABS, BV.

15ppm Oily Water Separators
1.  C apacity: 0.25M3/h~5.0M3/h .
2.  O il content in effluent water: less than 15ppm .
3.  C ertificate: CCS,EC,ABS,BV .
4.  U sage: ships and vessels .
5. S tandard: IMO MEPC107(49) .
:
15ppm Oily Water Separators
China Deyuan Marine Fitting Co.ltd  is a professional supplier of marine equipment,such as 15ppm bilge separator,15ppm oily water separator,15ppm bilge alarm,oil content meter,marine sewage treatment plant etc.Pls contact us for more details if you are interested.

Type DY-0.25 DY-0.5 DY-1.0 DY-1.50 DY-2.0 DY-2.5 DY-3.0 DY-4.0
Rated capacity
(M3/H)
0.25/0.31 0.5/0.62 1.0/1.25 1.5/1.87 2/2.25 2.5/3.12 3/3.75 4.0/5.0
Power (kw) 0.75 1.10 1.10 1.10 2.20 2.20 3.0 3.0
Steam heater
M2/kw
--- --- 1/30 1.5/45 2/60 2.5/75 3/90 4/120
15ppm
Bilge alarm
including including including including includig including includig includig
base #5 #6 #6 #8 #8 #8 #10 #10
dimension 1000*600*1320 1100*690*1460 1050*1084*1500 1100*1130*1660 1900*1120*1700 1700*1500*1900 2400*
1700*2020
2500*
2000*1820
Dry weight/
Net weight
300/450 600/800 800/860 1060/1810 1260/
2260
1500/
2800
1800/
3200
2100/
3900
Suitable for vessels 1000
DWT
1000~5000 DWT 5~10
KDWT
10~30
KDWT
30~50
KDWT
50~100
KDWT
100~200
KDWT
100~300
KDWT
15 Ppm Oily Water Separators
15 Ppm Oily Water Separators
15 Ppm Oily Water Separators
