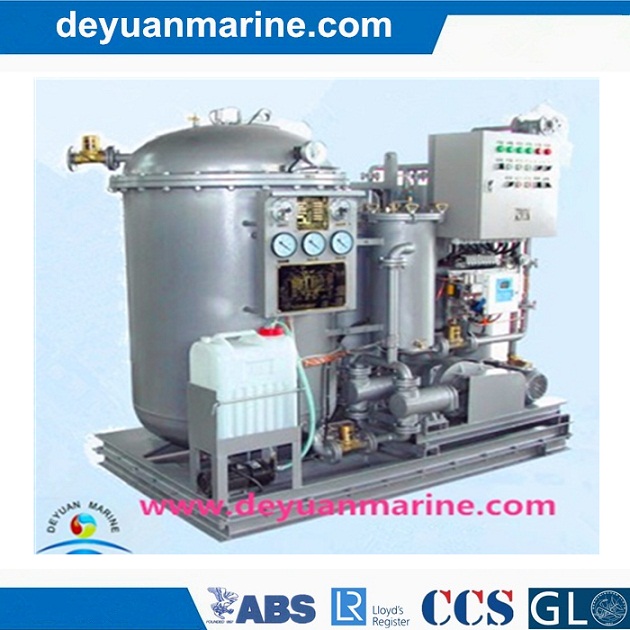

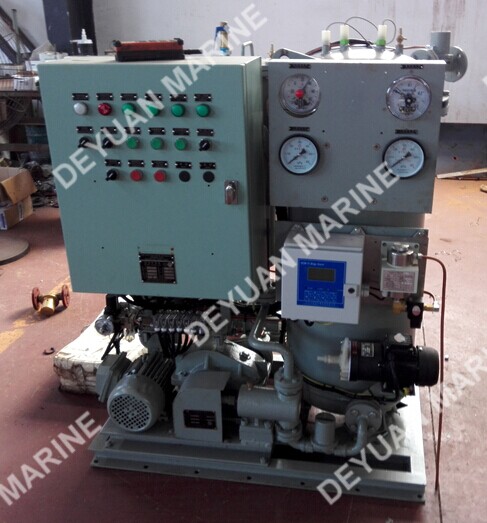

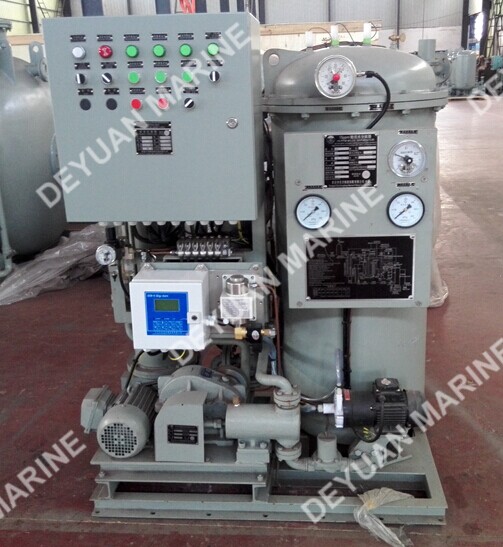

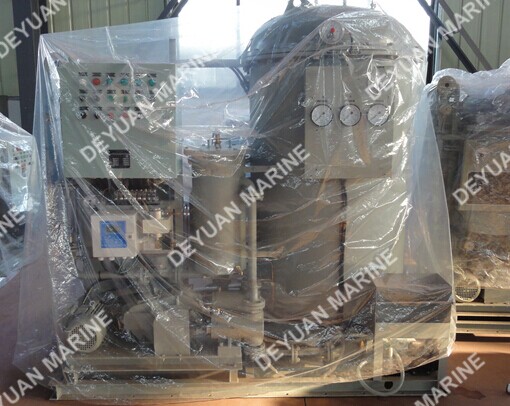

Marine Used 15PPM Bilge Water Separator Oil and Water Separator Ows for vessel
China Deyuan Marine Fitting Co. Ltd is a professional supplier of marine equipment, such as 15ppm bilge separator, 15ppm oily water separator, 15ppm bilge alarm, oil content meter, marine sewage treatment plant etc. Pls contact us for more details if you are interested.
1. Oily Water Separators capacity: 0.25M3/h~5.0M3/h.
2. oil content in effluent water: less than 15ppm.
3. Oily Water Separators certificate: CCS,EC,ABS,BV.
4. Oily Water Separators usage: ships and vessels.
5. Oily Water Separators standard: IMO MEPC107(49).
15ppm Bilge water separator
China Deyuan Marine Fitting Co.ltd is a professional supplier of marine equipment,such as 15ppm bilge separator,15ppm oily water separator,15ppm bilge alarm,oil content meter,marine sewage treatment plant etc.Pls contact us for more details if you are interested.
Type | DY-0.25 | DY-0.5 | DY-1.0 | DY-1.50 | DY-2.0 | DY-2.5 | DY-3.0 | DY-4.0 |
Rated capacity (M3/H) | 0.25/0.31 | 0.5/0.62 | 1.0/1.25 | 1.5/1.87 | 2/2.25 | 2.5/3.12 | 3/3.75 | 4.0/5.0 |
Power (kw) | 0.75 | 1.10 | 1.10 | 1.10 | 2.20 | 2.20 | 3.0 | 3.0 |
Steam heater M2/kw | --- | --- | 1/30 | 1.5/45 | 2/60 | 2.5/75 | 3/90 | 4/120 |
15ppm Bilge alarm | including | including | including | including | includig | including | includig | includig |
base | #5 1000*600 | #6 1100*690 | #6 1050*1084 | #8 1100*1130 | #8 1900*1120 | #8 1700*1500 | #10 2400* 1700 | #10 2500* 2000 |
dimension | 1320 | 1460 | 1500 | 1660 | 1700 | 1900 | 2020 | 1820 |
Dry weight/ Net weight | 300/450 | 600/800 | 800/860 | 1060/1810 | 1260/ 2260 | 1500/ 2800 | 1800/ 3200 | 2100/ 3900 |
Suitable for vessels | 1000 DWT | 1000~5000 DWT | 5~10 KDWT | 10~30 KDWT | 30~50 KDWT | 50~100 KDWT | 100~200 KDWT | 100~300 KDWT |
