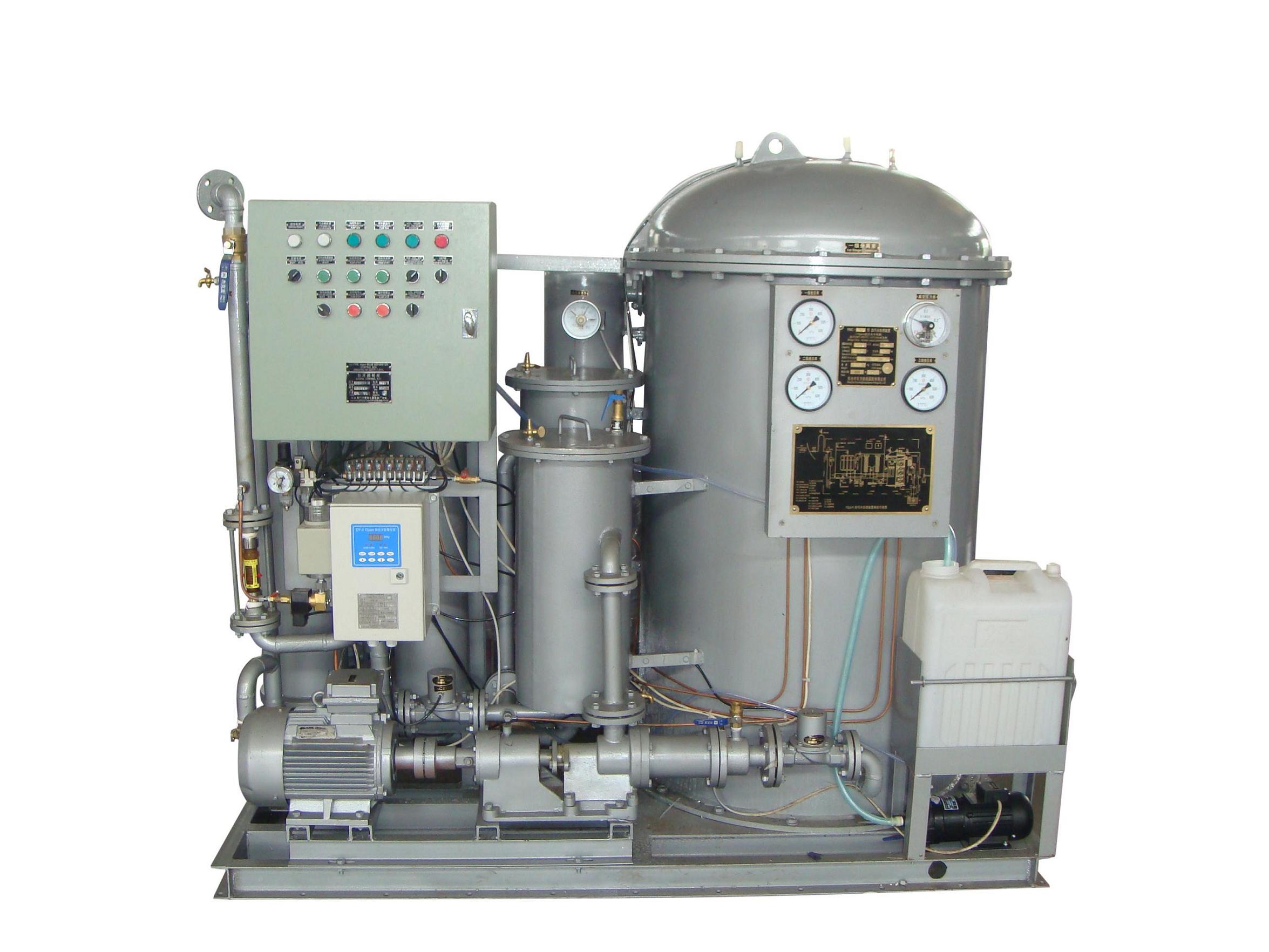

2.50m3/h Marine Oil Water Separator


  • China (Mainland)


  • YWC-2.50

  • Wooden case packaging.

  • About 15 to 30 days.


2.50m3h Marine Oil Water Separator :

To comply with resolution IMO MEPC.107 (49), on board, especially ocean-going ships, they must be installed on board: 15ppm bilge separator, 15ppm bilge alarm and automatic stopping device.

Workgin Principle:

the main parts adopt international famous brands, including electrical control box components provided by Schneider, 15ppm bilge alarm provided by the German DECKMA Ha, screw pump provided by the Mono Pump.

Technical Data:

Rated capacity 2.50 m3 per hour
Power of the electric heater 6kw
Power of the electric motor 1.5kw
Outline Dimension(LxWxH) 1900x1120x1900
Base 8#
Weight Dry Weight 1500
Wet Weight 2800
Applicable Vessel 50-100DWT
Optional electrical system AC 380V/50Hz/3 phase,AC 415V/50Hz/3 phase, AC 440/60Hz/3 phase,AC 480V/60HZ/33 phase.
Oil content of the discharged water Not more than 15ppm
Suction head Not more than 6m-H2O
Pressure of the discharged water 5-10m-H2O
