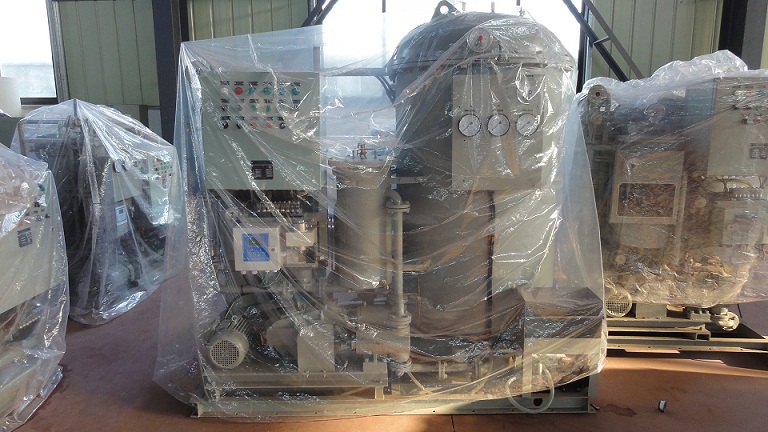

Imo Mepc 10749 and 22764 Standard Uscg Approved Sewage Treatment Plant 15ppm Bilge Oily Water Separator Oil Sludge Separator

Inquire Add to Basket

  • DY15PPM

  • Less Than 15ppm.

  • Ships and Vessels.

  • Deyuan

  • CCS, BV, ABS

  • 63072000

  • 0.25m3/H~5.0m3/H.

  • CCS,Ec,ABS,BV.

  • Imo Mepc107(49).

  • Wooden Case

  • China

IMO MEPC 10749 and 22764 standard USCG Approved Sewage Treatment Plant 15ppm Bilge Oily Water Separator Oil Sludge Separator

China Deyuan Marine Fitting Co.ltd is a professional supplier of marine equipment,such as 15ppm bilge separator,15ppm oily water separator,15ppm bilge alarm,oil content meter,marine sewage treatment plant etc.Pls contact us for more details if you are interested.
Type DY-0.25 DY-0.5 DY-1.0 DY-1.50 DY-2.0 DY-2.5 DY-3.0 DY-4.0
Rated capacity
(M3/H)		 0.25/0.31 0.5/0.62 1.0/1.25 1.5/1.87 2/2.25 2.5/3.12 3/3.75 4.0/5.0
Power (kw) 0.75 1.10 1.10 1.10 2.20 2.20 3.0 3.0
Steam heater
M2/kw		 --- --- 1/30 1.5/45 2/60 2.5/75 3/90 4/120
15ppm
Bilge alarm		 including including including including includig including includig includig
base #5
1000*600		 #6
1100*690		 #6
1050*1084		 #8
1100*1130		 #8
1900*1120		 #8
1700*1500		 #10
2400*
1700		 #10
2500*
2000
dimension 1320 1460 1500 1660 1700 1900 2020 1820
Dry weight/
Net weight		 300/450 600/800 800/860 1060/1810 1260/
2260		 1500/
2800		 1800/
3200		 2100/
3900
Imo Mepc 10749 and 22764 Standard Uscg Approved Sewage Treatment Plant 15ppm Bilge Oily Water Separator Oil Sludge Separator
