Biochemical Marine Sewage treatment Plant For Sale

Specifications

*Capacity:10~250person.
*Standard: IMO MEPC159(55),MARPOL 73/78.
*Certificate : CCS,EC,BV,ABS.

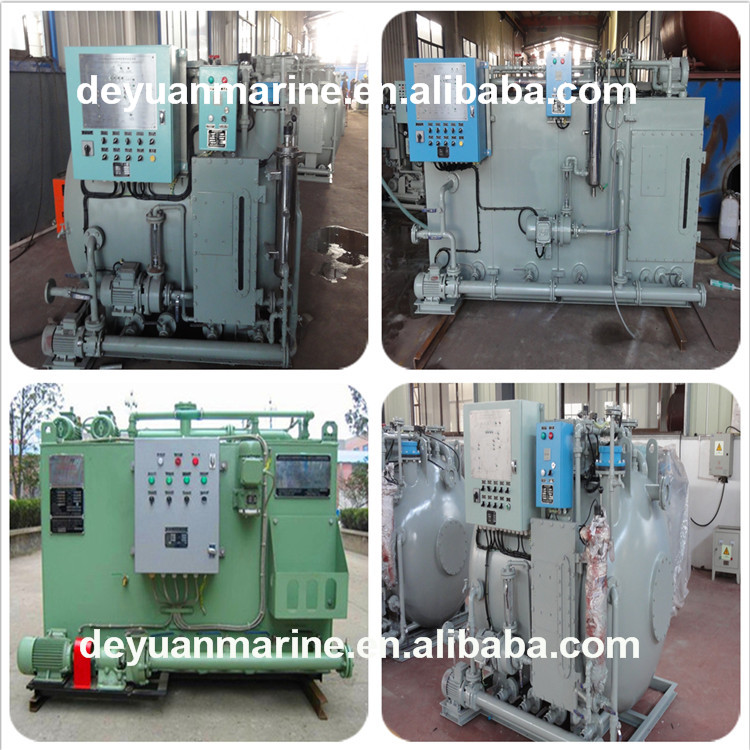

Marine Sewage Treatment Plant

*Capacity:10~250person.

*Standard: IMO MEPC159(55),MARPOL 73/78.

*Certificate : CCS,EC,BV,ABS.

*Usage: ships &vessels.

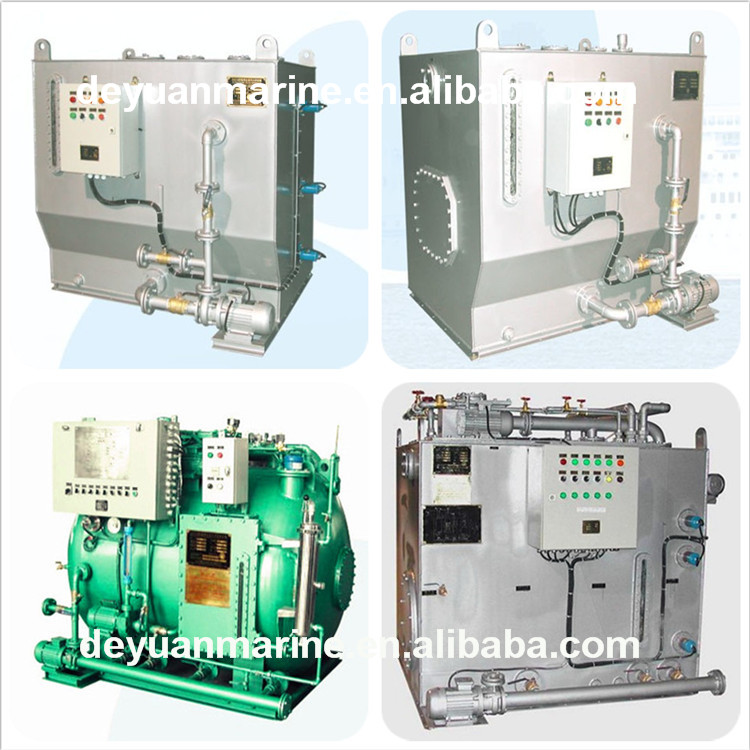

Marine Sewage Treatment Plant

Model		15	20	25	30	40	50	60	80		100	150	200	250
Load	Average load L/d	1190	1540	1890	2310	3080	3780	4480	6020		7700	11200	14700	18200
	Peak load L/h	149	193	237	289	385	473	560	753		963	1400	1838	2275
	Organic load kgBOD5/d	0.595	0.77	0.945	1.155	1.54	1.89	2.24	3.01		3.85	5.6	7.35	9.10
Rated capacity(P)		15	20	25	30	40	50	60	80		100	150	200	250
Max capacity(P)		17	22	27	33	44	54	64	86		110	160	210	260
Electricity		AC380V, 50HZ, 3φ/AC 440, 60Hz, 3φ
Power(KW)		1.5	1.5	1.5	1.5	1.5	2.0	2.0	2.5	2.5		3.0
External dimensions LWH(mm)		1550× 1400× 1600	1650× 1400× 1600	1850× 1500× 1635	1950× 1500× 1635	1800× 1700× 1900	1900× 1700 1950	2100× 1700× 2000	2500× 1900× 2150	2500× 1900× 2300		3150× 2400× 2300
Discharge standard		TSS35mg/L, BOD525mg/L, COD125mg/L, Coli form100pcs/100ml, PH:68.5
