DEYUAN
Chongqing, China (Mainland)
DEYUAN
YWC-0.25
Wooden case packaging.
About 15 to 30 days.

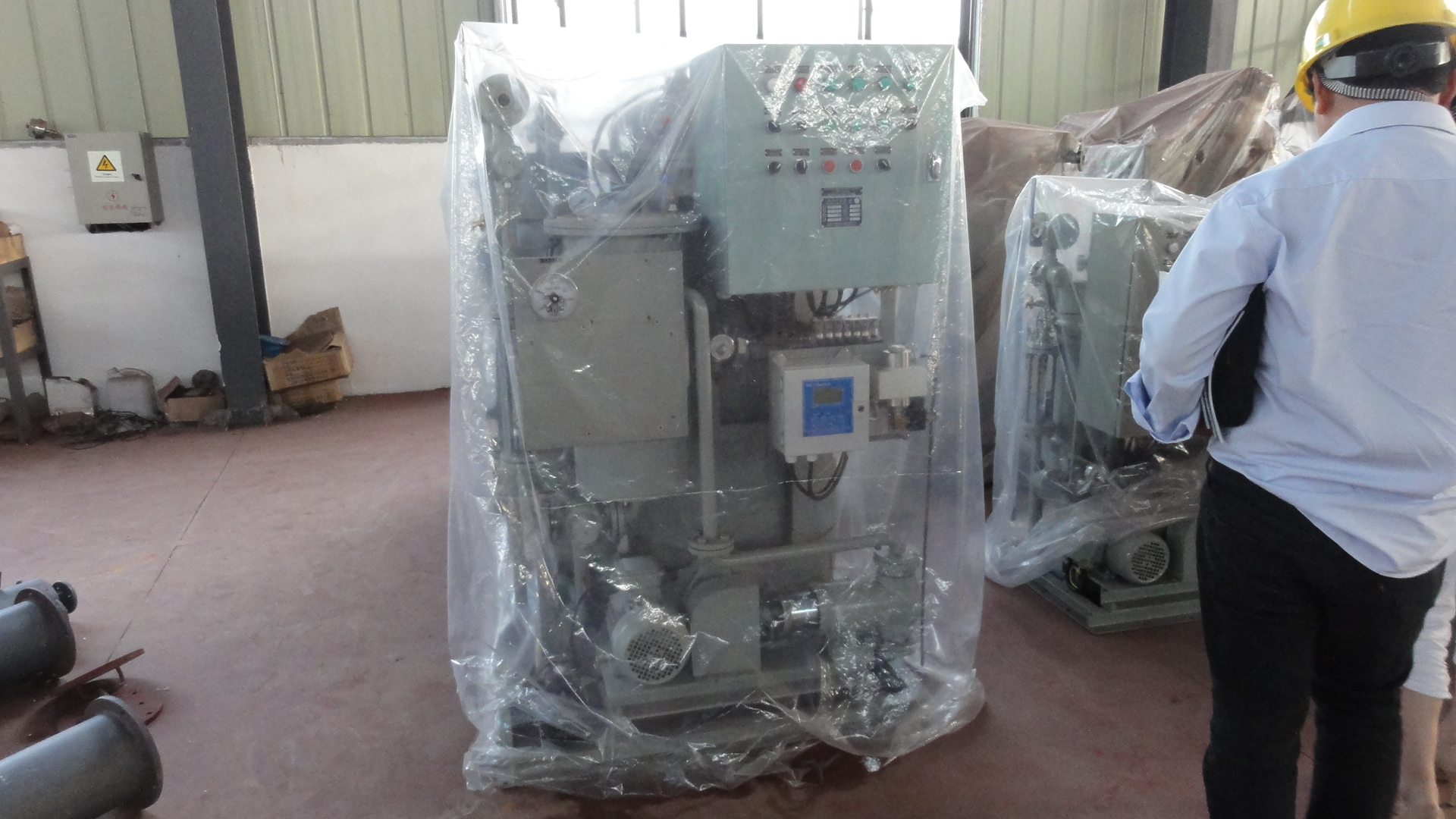

Vessel Oily Water Separator :
YWC-0.25 Vessel Oily Water Separator :
This device can be used to treat oily bilge water in order to make it reach the requirements of IMO.MEPC.107 (49) resolution, which is also called 15ppm bilge separator.
The device adopts the combination of 1st stage - cone plate gravity and coalesce separation, 2nd stage - fiber filter and 3rd stage - membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
| Rated capacity | 0.25 m3 per hour | |
| Power of the electric heater | 1kw | |
| Power of the electric motor | 0.37kw | |
| Outline Dimension(LxWxH) | 1000x600x1250mm | |
| Base | 5# | |
| Weight | Dry Weight | 400 |
| Wet Weight | 550 | |
| Applicable Vessel | <1000DWT | |
| Optional electrical system | AC 380V/50Hz/3 phase,AC 415V/50Hz/3 phase, AC 440/60Hz/3 phase,AC 480V/60HZ/33 phase. | |
| Oil content of the discharged water | Not more than 15ppm | |
| Suction head | Not more than 6m-H2O | |
| Pressure of the discharged water | 5-10m-H2O | |
Vessel Oily Water Separator :
YWC-0.25 Vessel Oily Water Separator :
This device can be used to treat oily bilge water in order to make it reach the requirements of IMO.MEPC.107 (49) resolution, which is also called 15ppm bilge separator.
The device adopts the combination of 1st stage - cone plate gravity and coalesce separation, 2nd stage - fiber filter and 3rd stage - membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
| Rated capacity | 0.25 m3 per hour | |
| Power of the electric heater | 1kw | |
| Power of the electric motor | 0.37kw | |
| Outline Dimension(LxWxH) | 1000x600x1250mm | |
| Base | 5# | |
| Weight | Dry Weight | 400 |
| Wet Weight | 550 | |
| Applicable Vessel | <1000DWT | |
| Optional electrical system | AC 380V/50Hz/3 phase,AC 415V/50Hz/3 phase, AC 440/60Hz/3 phase,AC 480V/60HZ/33 phase. | |
| Oil content of the discharged water | Not more than 15ppm | |
| Suction head | Not more than 6m-H2O | |
| Pressure of the discharged water | 5-10m-H2O | |
