175KN.M Marine Hydraulic Steering Wheel Gear Shift

175KN.M Marine Hydraulic Steering Wheel Gear Shift



Marine hydraulic steering gear



1)Suitable for:

Containers, tankers, ferries, General cargo ships, passage ships,

Dredgers and any other vessels that need more steering torque.



(2)Main Tech:



Max working torque:              15 KN.M — 250 KN.M



Max. mech. rudder angle:       ± 45 degree



Time of rudder movement:     ≤28 S



Rudder stock Diameter:          300mm — 900 mm



Working pressure:                  13 Mpa — 20 Mpa



Design pressure:                    16 Mpa — 24 Mpa



(3)Scope of delivery:

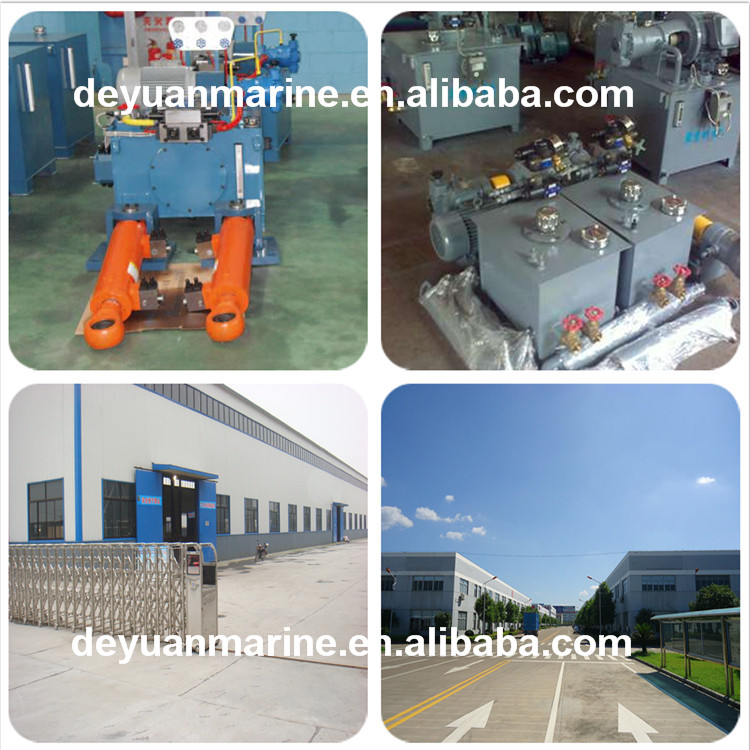

Marine steering gear with hydraulic cylinders



Electro-Hydraulic power station with oil pumps



Oil tanks



Start motors



On requests, the full range of  parts will be delivered.







(kn.m) Nominal Torque	Turning Angle (°)	(s) Turning time	(Mpa) Max working oil pressure	Gear pump/motor			(mm) rudder tiller radius	(Mm) Diameter  of radius
				Type	No	Output (kw)
10	±35	≤28/20	6.5	CBN-316	2	1.1	240	75-130
16	±35	≤28/20	10.2	CBN-316	2	1.1	240	75-130
20	±35	≤28/20	12	CBN-320	2	2.2	240	75-130
25	±35	≤28/20	10.9	CBN-320	2	2.2	290	75-150
30	±35	≤28/20	9.8	CBN-320	2	3	290	75-150
40	±35	≤28/20	10.3	CBN-420	2	3	360	1160
50	±35	≤28/20	12.5	CBN-420	2	4	480	170
