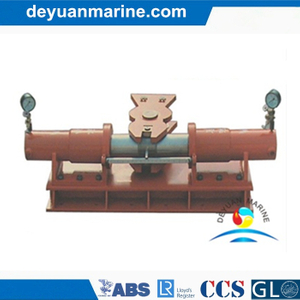

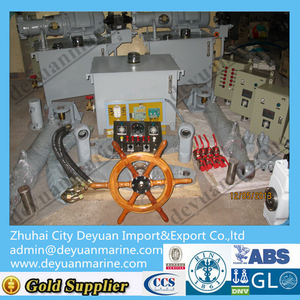

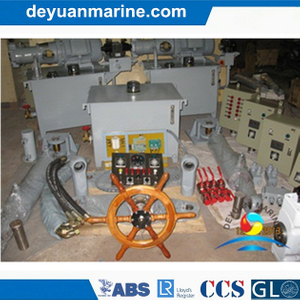

The linked cylinder type electro-hydraulic steering gear series consists of one
set of rudder mechanism with two piston type of cylinders, two sets of oil pump units,
one reserve tank, one control station. To finish procedure of steering control, rotate hand wheel in
wheel house,though steering mechanism controls hydraulic oil to cylinder access, thereby rudder blades work.
To change direction, operate steering switch of solenoid valve. When power is failure, steering mechanism can
be used to complete emergency steering control. It is widely used in navigation zone of inland rapid flowing river,
normal zone, and for fishing vessel or small size if sightseeing lunch.
No. | Torque(KN.m) | A | B | C | Radius of filler(R) | Height of the center(H) | Thickness of filler(H) |
1 | 4.5-6.3 | 1150 | 1150 | 887 | 200 | 100 | 100 |
2 | 6.3-8 | 1150 | 1150 | 887 | 200 | 120 | 120 |
3 | 8-12 | 1400 | 1180 | 1010 | 300 | 130 | 130 |
4 | 12-20 | 1500 | 1200 | 1110 | 300 | 130 | 130 |
5 | 20-30 | 1520 | 1250 | 1200 | 300 | 140 | 140 |
