Marine Double Rudder Hydraulic Steering Gear with CCS

Marine Double Rudder Hydraulic Steering Gear with CCS

1.Electro-hydraulic control.

2.Compact design.

3.Suitable for normal rudder blades.

4.Pumps with variable displacement or constant delivery.

5.One-piece tiller for standard or keyless fit of rudder stock.

6.pump units mounted on and completely piped with the cylinders.



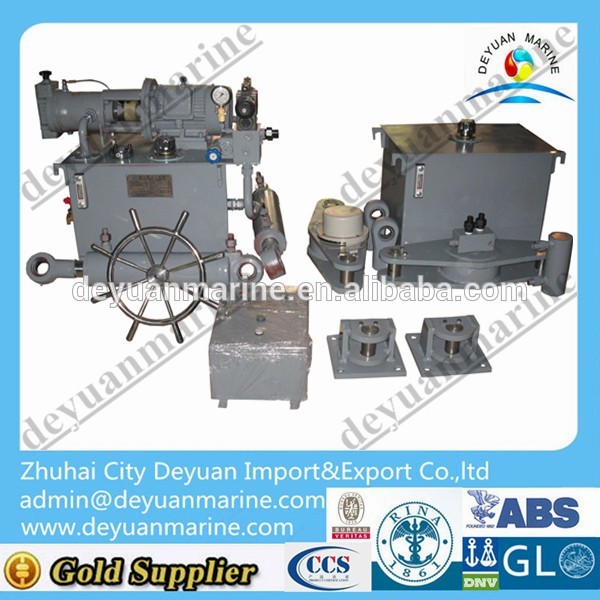

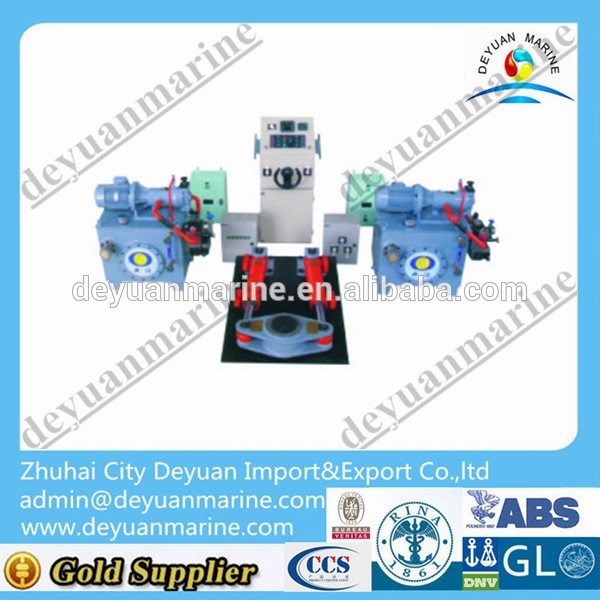

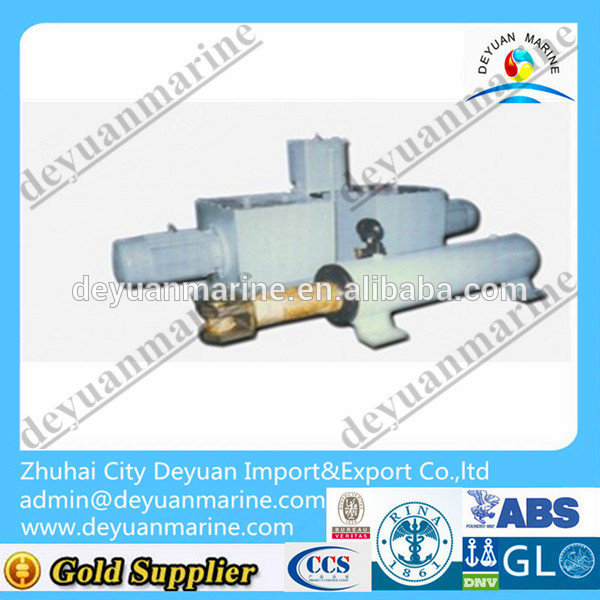

Double rudder hydraulic steering gear

Suitable for:

Containers, tankers, ferries, General cargo ships, passage ships,

Dredgers and any other vessels that need more steering torque.



(kn.m) Nominal Torque	Turning Angle (°)	Turning time(s)	Rated power (kw)	hydraulic steering gear Dimension (mm)
				A	B	C	D	F	G
DY63	35	28s/65°	5.5	2470	2320	505	350	380	694.5
DY100	35	28s/65°	7.5	2718	2500	505	400	420	704.5
DY160	35	28s/65°	11	2996	2740	505	450	420	704.5
DY200	35	28s/65°	15	3304	3020	505	500	550	726.5
DY250	35	28s/65°	15	3630	3160	505	550	550	726.5
DY320	35	28s/65°	18.5	3938	3400	505	600	550	726.5
DY400	35	28s/65°	18.5	3914	3600	560	570	600	950
DY450	35	28s/65°	18.5	4000	3600	560	570	600	950
DY500	35	28s/65°	18.5	4000	3600	560	570	600	950
