Marine Hydrophore

  • DEYUAN

  • China (Mainland)

  • DEYUAN

  • ZYG-0.2 0.3 0.5 1.0...

  • Pressure water tank

  • Water tank

  • 0.4Mpa

  • 1.5cwx-2

  • Export standard packaging.

  • About 20 days





Marine Hydrophore :

Technical Specification:

Design pressure: 0.6MPa

working pressure: 0.5MPa

working medium:fresh water

volume:1.0m⊃3;

structural testing: 0.9MPa

dense experiment: 0.75MPa (There is no leakage)

Inside and outside superficial stain removal, The internal surface coates non-toxic white drinking water tank primer and finish 2 degree; Outside surface paint Fuxin primer 2 degrees, coating blue enamel paint 2 degrees.

The standard of the flange:ANSI B 16.5,RF#150.

SS304 piping&fitting;IP44 min.

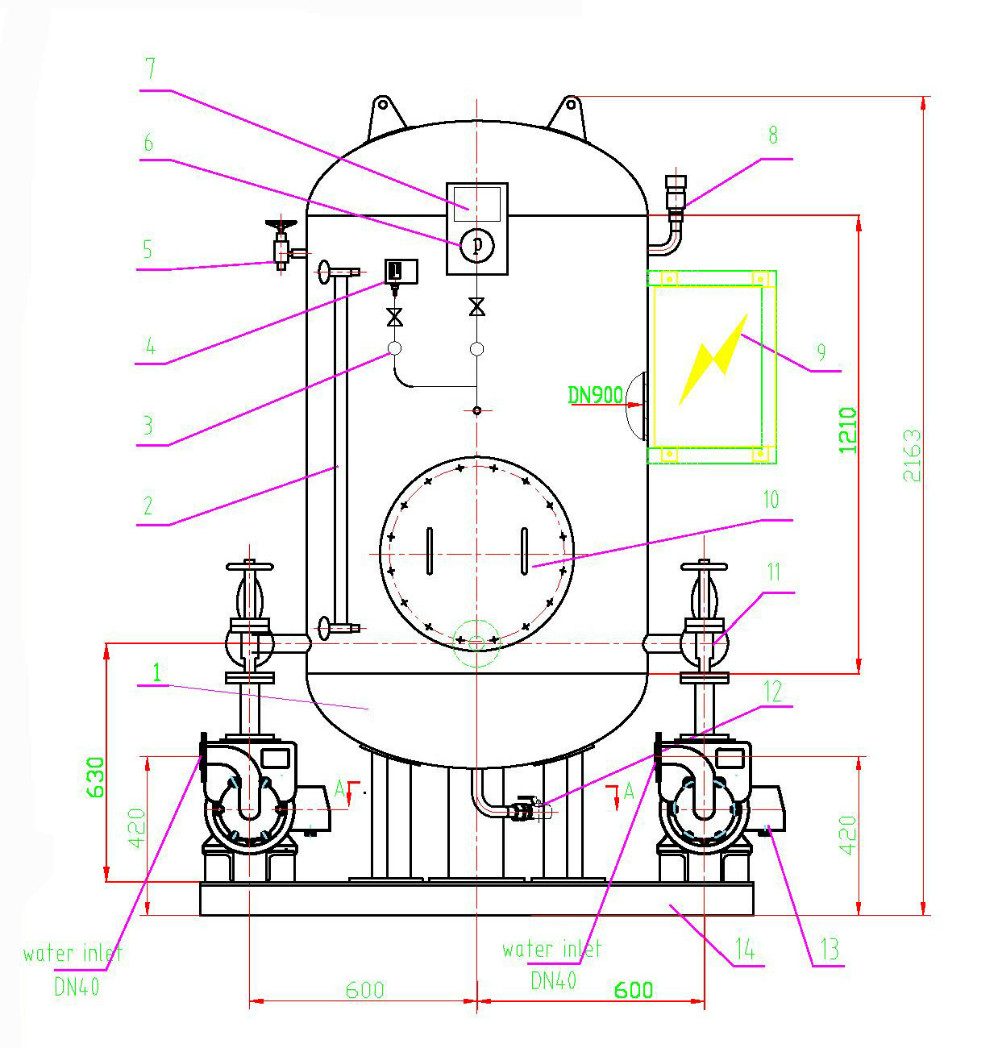

General Drawing:

No.

Model

Spares Description

Qty. (pc)

Remarks

1


Main body δ6

1

Q235B

2

ULG-940H/A

Liquidometer

1

Assembly

3


nstrument valve

2

Assembly

4

KP35

Pressure controller

1

Assembly

5

B40010 GB596

Stop-check valve

1

copper

6

YC-100T

Pressure gauge

1

Assembly

7


Nameplate

1

stainless steel

8

A21F-16P

Safety valve

1

Assembly

9


Electric control box

1

Assembly

10

DN400

Manhole cover

1

Assembly

11

B16040 GB591-93

Stop-check valve

2

Assembly

12

DN20

Ball valve

1

stainless steel

13

1.5CWX-3G

Water pump

2

cast iron

14


Base

1

Q235A

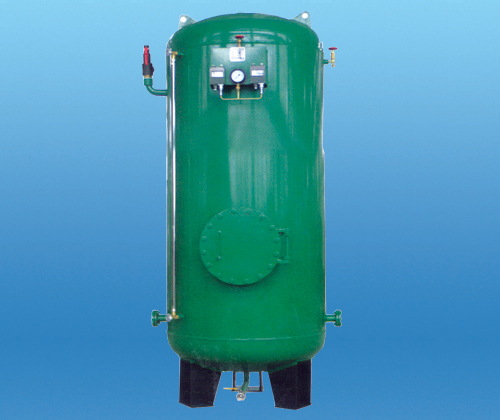

   692010072309160470554752
