Pressure water tank
Water tank
Export standard packaging.
About 20 days

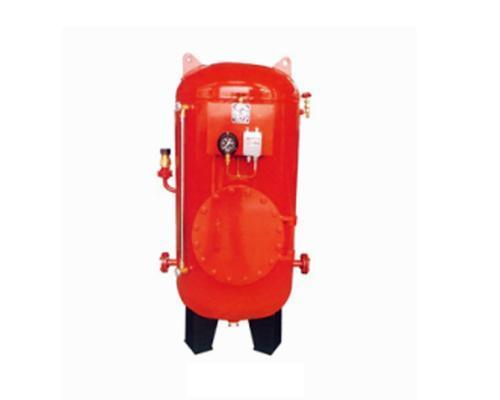

Offshore Hydrophore :
The offshore hydrophore is used for oil platform on sea.
This series hydrophore is suitable for ship fresh water pipes and sea-water pipes. The unit combines hydrophore, water pumps, valves and pipes together. It is modular, compact and beautiful, easy to install and maintain. So it is an ideal unit for water supply system.
The hydrophore unit has the vertical and horizontal water pump configurations for customer to choose.
| Model | ZYG- | |||||||
| | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | |
| Volume(m3) | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | |
| Working pressure(MPa) | 0.4 | |||||||
| Design pressure(MPa) | 0.44 | |||||||
| Test pressure(MPa) | 0.66 | |||||||
| Take-off pressure of safety valve(MPa) | 0.42 | |||||||
| Working temperature(℃) | 0~45 | |||||||
| Design temperature(℃) | 50 | |||||||
| Water pump | Model | 1.5CWX-1.5/1.5A | 1.5CWX-2/2A | 1.5CWX-3/3A | ||||
| Flow rate(m3/h) | 3 | 6.5 | 10 | |||||
| Pumping head (m) | 40 | 40 | 40 | |||||
| Power(kW) | 2.2 | 3 | 4 | |||||
