Rotary Vane Type Marine Steering Gear

 Rotary Vane Type Marine Steering Gear

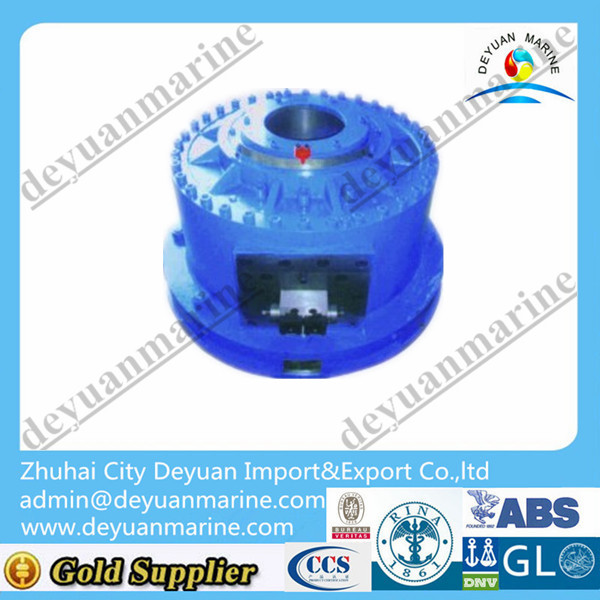

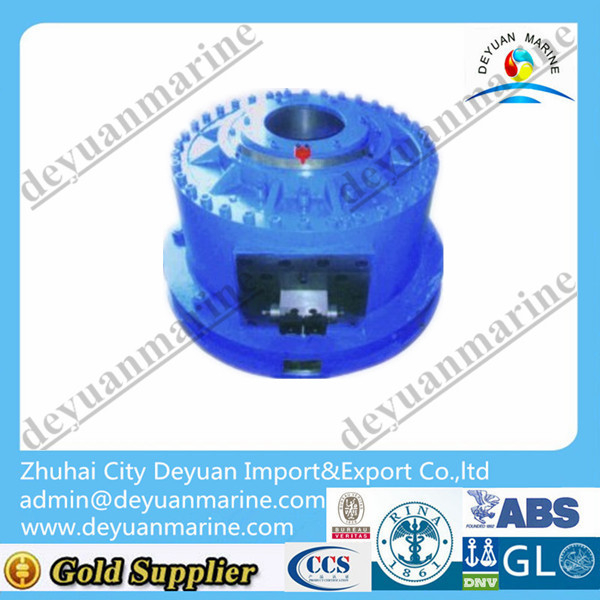

Hydraulic Rotary Vane Steering Gear

Suitable for:

Containers, tankers, ferries, General cargo ships, passage ships,

Dredgers and any other vessels that need more steering torque.

Marin advantages:

1.Electro-hydraulic control.

2.Compact design.

3.Suitable for normal rudder blades.

4.Pumps with variable displacement or constant delivery.

5.One-piece tiller for standard or keyless fit of rudder stock.

6.pump units mounted on and completely piped with the cylinders.



(kn.m) Nominal  Torque	Turning Angle (°)	(s) Turning  time	(Mpa) Max  working  oil  pressure	Gear pump/motor			(mm) rudder  tiller radius	(Mm) Diameter  of radius
				Type	No	Output (kw)
10	±35	≤28/20	6.5	CBN-316	2	1.1	240	75-130
16	±35	≤28/20	10.2	CBN-316	2	1.1	240	75-130
20	±35	≤28/20	12	CBN-320	2	2.2	240	75-130
25	±35	≤28/20	10.9	CBN-320	2	2.2	290	75-150
30	±35	≤28/20	9.8	CBN-320	2	3	290	75-150
40	±35	≤28/20	10.3	CBN-420	2	3	360	1160
