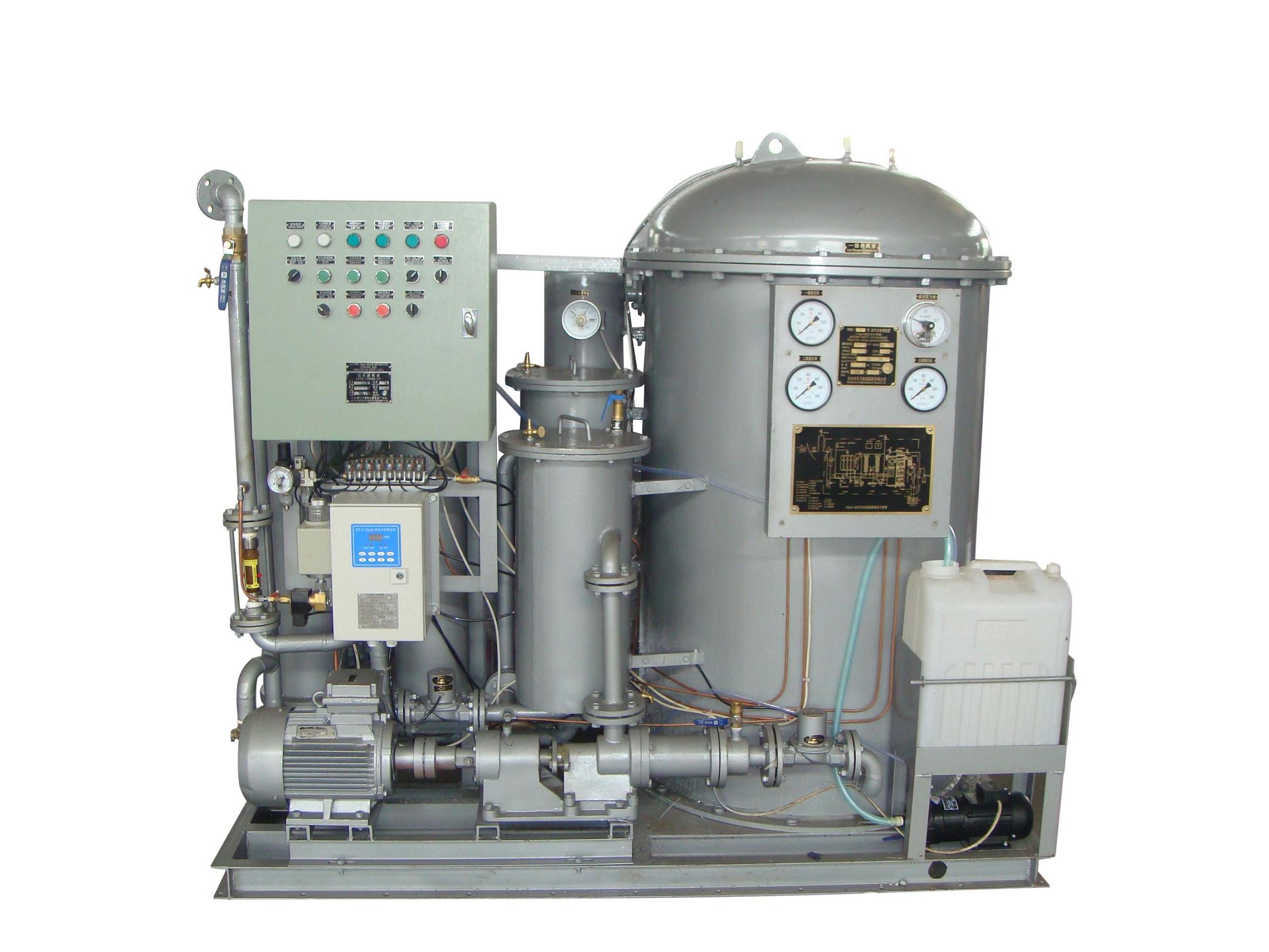

1.00m3/h Marine Oil Water Separator Factory :
This Marine Bilge Water Separator can treat in bilge water effectively,make the oil content in effluent water≤15ppm,satisfy with the requirements of IMO MEPC.107(49).
The device adopts the combination of 1st stage, cone plate gravity and coalesce separation
2nd stage, fiber filter and 3rd stage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
Rated capacity | 1.00 m3 per hour | |
Power of the electric heater | 6kw | |
Power of the electric motor | 0.75kw | |
Outline Dimension(LxWxH) | 1050x1000x1620 | |
Base | 6# | |
Weight | Dry Weight | 800 |
Wet Weight | 1200 | |
Applicable Vessel | 5-10KDWT | |
Optional electrical system | AC 380V/50Hz/3 phase,AC 415V/50Hz/3 phase, | |
AC 440/60Hz/3 phase,AC 480V/60HZ/33 phase. | ||
Oil content of the discharged water | Not more than 15ppm | |
Suction head | Not more than 6m-H2O | |
Pressure of the discharged water | 5-10m-H2O |
