DEYUAN
China (Mainland)
DEYUAN
YWC-1.50
Wooden case packaging.
About 15 to 30 days.

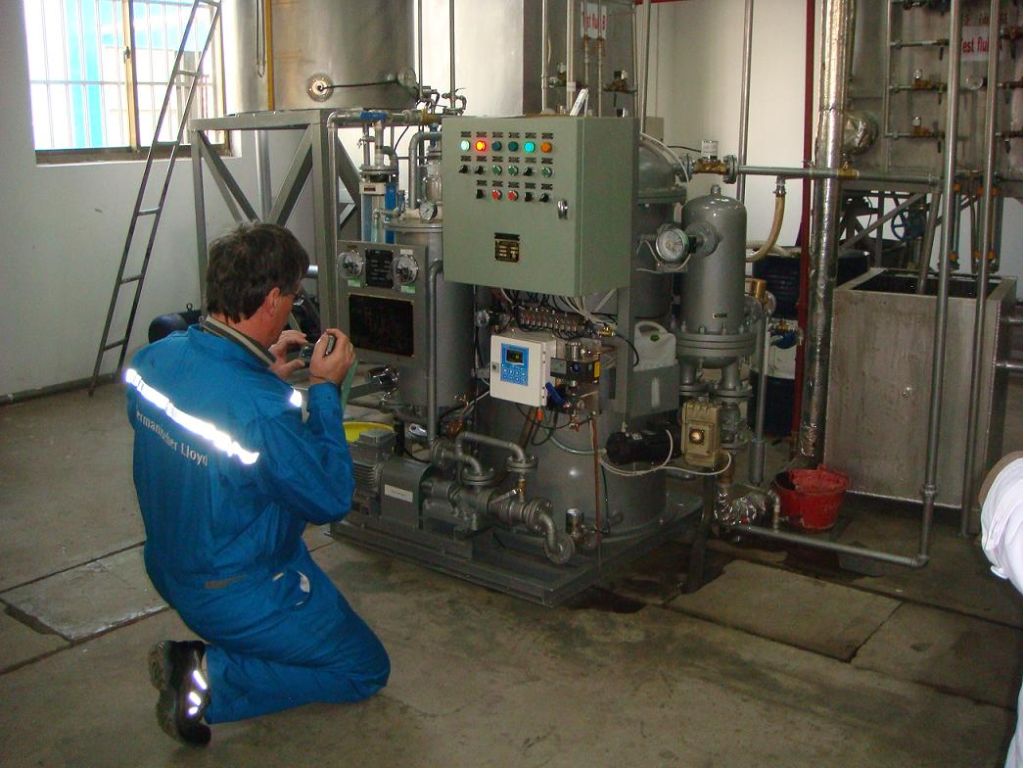

1.50m3/h Oily Ballast Water Separator :
It can be used in industrial and petroleum, besides in ship vessels. The effluent oil content from our oil water separator can meet any standards of Environment Bureau in China. Principle:
The device adopts the combination of 1st stage - cone plate gravity and coalesce separation, 2nd stage - fiber filter and 3rd stage - membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
| Rated capacity | 1.50 m3 per hour | |
| Power of the electric heater | 6kw | |
| Power of the electric motor | 1.1kw | |
| Outline Dimension(LxWxH) | 1100x1130x1650 | |
| Base | 6# | |
| Weight | Dry Weight | 1060 |
| Wet Weight | 1650 | |
| Applicable Vessel | 10-30DWT | |
| Optional electrical system | AC 380V/50Hz/3 phase,AC 415V/50Hz/3 phase, AC 440/60Hz/3 phase,AC 480V/60HZ/33 phase. | |
| Oil content of the discharged water | Not more than 15ppm | |
| Suction head | Not more than 6m-H2O | |
| Pressure of the discharged water | 5-10m-H2O | |
1.50m3/h Oily Ballast Water Separator :
It can be used in industrial and petroleum, besides in ship vessels. The effluent oil content from our oil water separator can meet any standards of Environment Bureau in China. Principle:
The device adopts the combination of 1st stage - cone plate gravity and coalesce separation, 2nd stage - fiber filter and 3rd stage - membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
| Rated capacity | 1.50 m3 per hour | |
| Power of the electric heater | 6kw | |
| Power of the electric motor | 1.1kw | |
| Outline Dimension(LxWxH) | 1100x1130x1650 | |
| Base | 6# | |
| Weight | Dry Weight | 1060 |
| Wet Weight | 1650 | |
| Applicable Vessel | 10-30DWT | |
| Optional electrical system | AC 380V/50Hz/3 phase,AC 415V/50Hz/3 phase, AC 440/60Hz/3 phase,AC 480V/60HZ/33 phase. | |
| Oil content of the discharged water | Not more than 15ppm | |
| Suction head | Not more than 6m-H2O | |
| Pressure of the discharged water | 5-10m-H2O | |
