Deyuan Marine

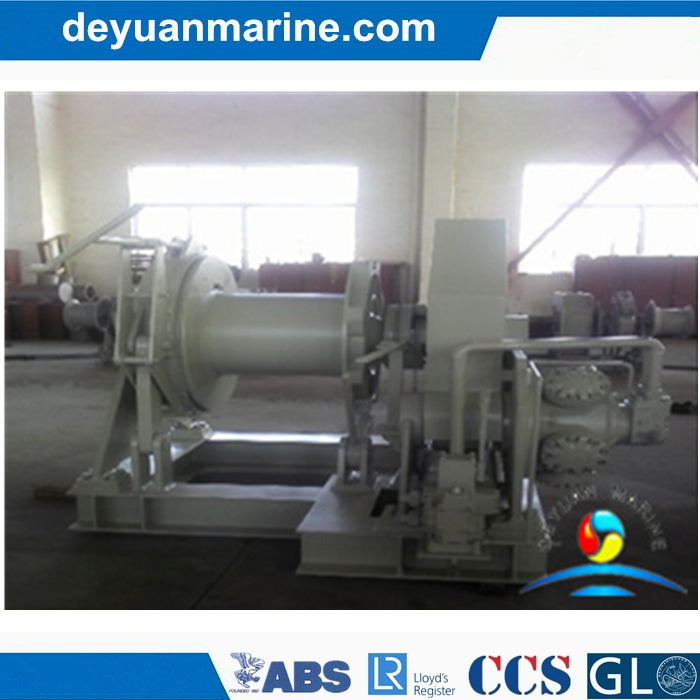

Mooring Winch Features:
1) Drive: Hydraulic
2) Configuration: Horizontal arrangement
3) Rope drum: Steel wire rope
4) Rope speed: Complying with ISO requirements
5) Rate pull (1st layer): 130 Tonnes
5) Clutch: Hydrulic operated
6) Brake: Hydraulic operated band failsafe brake
7) Brake Holding: 1st layer static up to 200Tonnes or complying with ISO/ Classification Society requirement
8) Control: Local/ remote control
Specifications:
| Name | Rated pull(kn) | Rate speed (m/min) | Drum capacity (m) | Motor Power (kw) |
| 5KN electric mooring winch | 5 | ≥12 | Φ15*100 | 3/1.2 |
| 10KN electric mooring winch | 10 | ≥12 | Φ15*150 | 4.3/1.7 |
| 20KN electric mooring winch | 20 | ≥12 | Φ15*150 | 8.5/3.5 |
| 30KN electric mooring winch | 30 | ≥15 | Φ15*150 | 11/11/7.5 |
| 40KN electric mooring winch | 40 | ≥15 | Φ17.5*150 | 16/16/11 |
| 50KN electric mooring winch | 50 | ≥15 | Φ20.5*180 | 22/22/16 |
| 75KN electric mooring winch | 75 | ≥15 | Φ26*200 | 30/30/22 |
| 80KN electric mooring winch | 80 | ≥12 | Φ26*200 | 30/30/22 |
| 100KN electric mooring winch | 100 | ≥12 | Φ30*200 | 30/30/22 |
| 130KN electric mooring winch | 130 | ≥12 | Φ26*200 | 60/60/45 |
| 160KN electric mooring winch | 160 | ≥12 | Φ30*250 | 60/60/45 |
| 200KN electric mooring winch | 200 | ≥9.6 | Φ41*250 | 60/60/45 |
| 250KN electric mooring winch | 250 | ≥9.6 | Φ44.5*250 | 75 |
We are leading supplier of anchor, anchor windlass,anchor chain, made of Grade 2 and Grade 3 steel diameter from
12.5mm to 60mm , accessories, and ship mooring equipment product, which are all certificated
by authorized classification societies , including CCS(P.R. China),LR(U.K.),GL(Korea) and RS(Russia) etc.
Mooring Winch Features:
1) Drive: Hydraulic
2) Configuration: Horizontal arrangement
3) Rope drum: Steel wire rope
4) Rope speed: Complying with ISO requirements
5) Rate pull (1st layer): 130 Tonnes
5) Clutch: Hydrulic operated
6) Brake: Hydraulic operated band failsafe brake
7) Brake Holding: 1st layer static up to 200Tonnes or complying with ISO/ Classification Society requirement
8) Control: Local/ remote control
Specifications:
| Name | Rated pull(kn) | Rate speed (m/min) | Drum capacity (m) | Motor Power (kw) |
| 5KN electric mooring winch | 5 | ≥12 | Φ15*100 | 3/1.2 |
| 10KN electric mooring winch | 10 | ≥12 | Φ15*150 | 4.3/1.7 |
| 20KN electric mooring winch | 20 | ≥12 | Φ15*150 | 8.5/3.5 |
| 30KN electric mooring winch | 30 | ≥15 | Φ15*150 | 11/11/7.5 |
| 40KN electric mooring winch | 40 | ≥15 | Φ17.5*150 | 16/16/11 |
| 50KN electric mooring winch | 50 | ≥15 | Φ20.5*180 | 22/22/16 |
| 75KN electric mooring winch | 75 | ≥15 | Φ26*200 | 30/30/22 |
| 80KN electric mooring winch | 80 | ≥12 | Φ26*200 | 30/30/22 |
| 100KN electric mooring winch | 100 | ≥12 | Φ30*200 | 30/30/22 |
| 130KN electric mooring winch | 130 | ≥12 | Φ26*200 | 60/60/45 |
| 160KN electric mooring winch | 160 | ≥12 | Φ30*250 | 60/60/45 |
| 200KN electric mooring winch | 200 | ≥9.6 | Φ41*250 | 60/60/45 |
| 250KN electric mooring winch | 250 | ≥9.6 | Φ44.5*250 | 75 |
We are leading supplier of anchor, anchor windlass,anchor chain, made of Grade 2 and Grade 3 steel diameter from
12.5mm to 60mm , accessories, and ship mooring equipment product, which are all certificated
by authorized classification societies , including CCS(P.R. China),LR(U.K.),GL(Korea) and RS(Russia) etc.
