Deyuan Marine

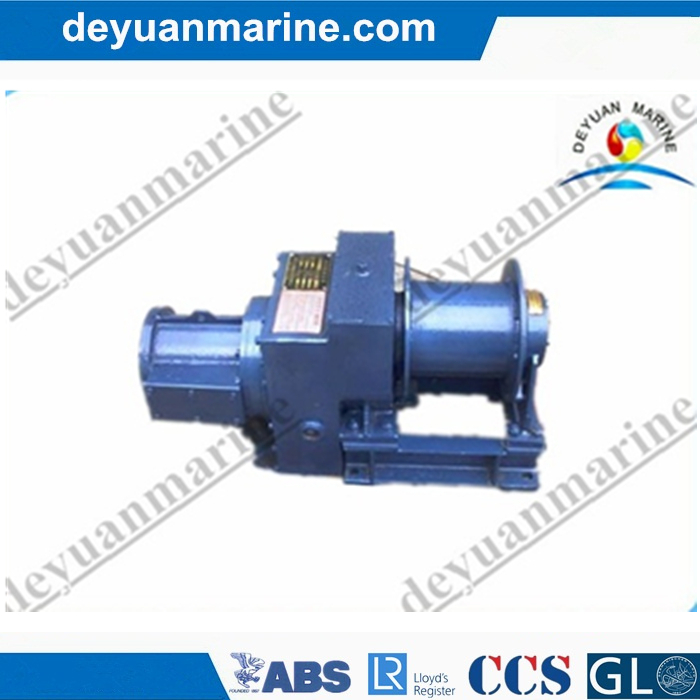

Pneumatid Rope Ladder Winch
The winch can be operated manually with a crank in case of an air failure.
Limit swithes are installed with the crank. As a result, the air-resource can
be automatically cut off when the crank is taken away and reconnected when it's
placed back to its normal keep.
| Rated load | 2000N |
| Support load | 3000N |
| Hoisting speed | 4.8~25.5m/min |
| Capacity of wire | 22m |
| Motor type | pending |
| Power | 3.5ps |
| Rotate speed | 1200r/min |
| Air press | 0.5~0.7Mpa |
| Air consumption | 3.5m3/min |
| Moving mode | manual |
Pneumatid Rope Ladder Winch
The winch can be operated manually with a crank in case of an air failure.
Limit swithes are installed with the crank. As a result, the air-resource can
be automatically cut off when the crank is taken away and reconnected when it's
placed back to its normal keep.
| Rated load | 2000N |
| Support load | 3000N |
| Hoisting speed | 4.8~25.5m/min |
| Capacity of wire | 22m |
| Motor type | pending |
| Power | 3.5ps |
| Rotate speed | 1200r/min |
| Air press | 0.5~0.7Mpa |
| Air consumption | 3.5m3/min |
| Moving mode | manual |
