Deyuan Marine

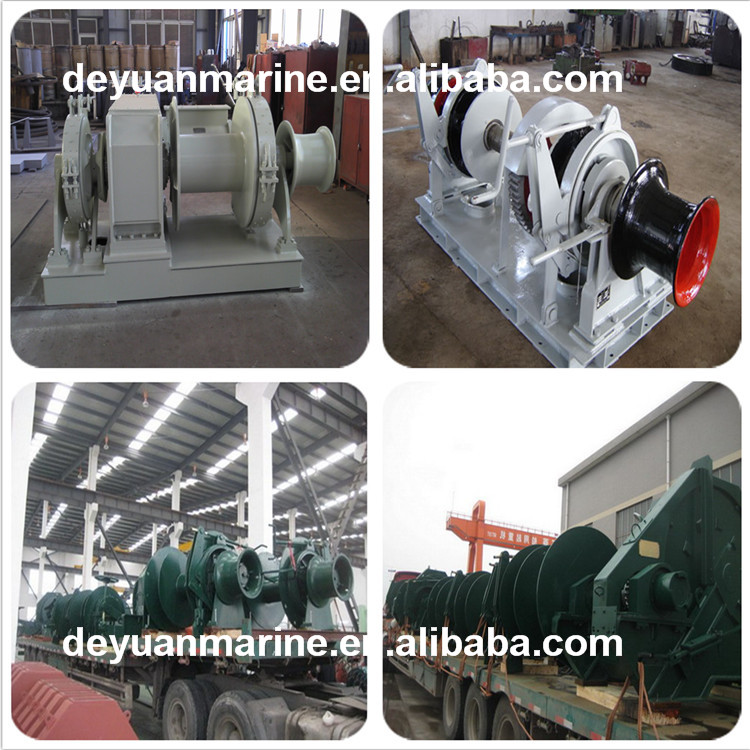

Electric Mooring Winch/Marine Mooring Winch:
China Deyuan Marine Fitting Co., Ltd is a professional supplier of marine winches,
we can offer mooring winches, anchor winches, accommodation ladder winches,
rope ladder winches, electric rescue boat winches, pneumatid rope
ladder winch and other anchor windlass, capstan, hydraulic steering gear.
Pls contact us for more detials.
Mooring Winch Features:
1) Drive: Hydraulic
2) Configuration: Horizontal arrangement
3) Rope drum: Steel wire rope
4) Rope speed: Complying with ISO requirements
5) Rate pull (1st layer): 130 Tonnes
5) Clutch: Hydrulic operated
6) Brake: Hydraulic operated band failsafe brake
7) Brake Holding: 1st layer static up to 200Tonnes or complying with ISO/ Classification Society requirement
8) Control: Local/ remote control
| Name | Rated pull(kn) | Rate speed (m/min) | Drum capacity (m) | Motor Power (kw) |
| 5KN | 5 | ≥12 | Φ15*100 | 3/1.2 |
| 10KN | 10 | ≥12 | Φ15*150 | 4.3/1.7 |
| 20KN | 20 | ≥12 | Φ15*150 | 8.5/3.5 |
| 30KN | 30 | ≥15 | Φ15*150 | 11/11/7.5 |
| 40KN | 40 | ≥15 | Φ17.5*150 | 16/16/11 |
| 50KN | 50 | ≥15 | Φ20.5*180 | 22/22/16 |
| 75KN | 75 | ≥15 | Φ26*200 | 30/30/22 |
| 80KN | 80 | ≥12 | Φ26*200 | 30/30/22 |
| 100KN | 100 | ≥12 | Φ30*200 | 30/30/22 |
| 130KN | 130 | ≥12 | Φ26*200 | 60/60/45 |
| 160KN electric mooring winch | 160 | ≥12 | Φ30*250 | 60/60/45 |
| 200KN electric mooring winch | 200 | ≥9.6 | Φ41*250 | 60/60/45 |
| 250KN electric mooring winch | 250 | ≥9.6 | Φ44.5*250 | 75 |
| 315KN electric mooring winch | 315 | ≥7.8 | Φ52*250 | 75 |
| 400KN electric mooring winch | 400 | ≥7.8 | Φ56*250 | 90 |
| 500KN electric mooring winch | 500 | ≥7.8 | Φ56*250 | 90 |
| 560KN electric mooring winch | 560 | ≥6 | Φ56*250 | 90 |
| 600KN electric mooring winch | 600 | ≥6 | Φ56*250 | 110 |
| 650KN electric mooring winch | 650 | ≥6 | φ56*250 | 110 |
