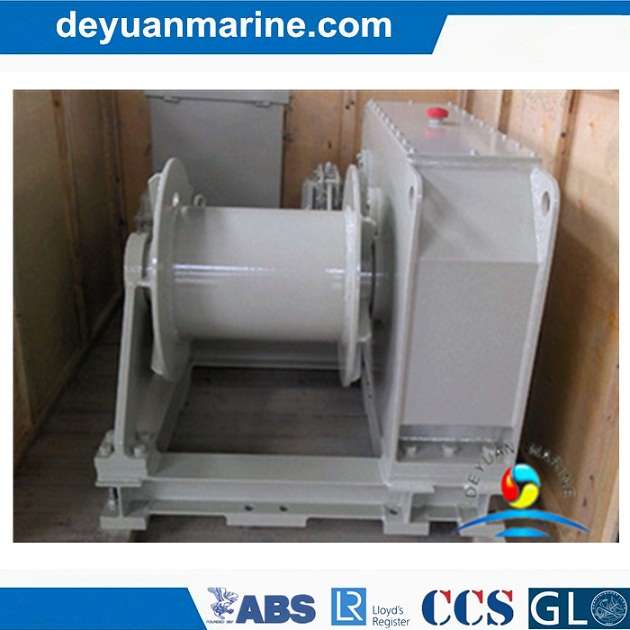

Electric Driven Rope Ladder Winch:
Mainly used for handling accomodation ladders upon the berthing of the vessel as
well as handling the pilot ladders when the vessels enter the harbor.
The axis of the motor and the reeling drum are laid out perpendicularly.
| Rated load | 2000N |
| Support load | 3000N |
| Hoisting speed | 4.8~25.5m/min |
| Capacity of wire | 22m |
| Motor type | YZ-112L-6-H |
| Power | 2.5kw |
| Rotate speed | 1100r/min |
| Power supply | 440v, 60hz |
| Duty factor | 30min |
| Moving mode | manual |
Electric Driven Rope Ladder Winch:
Mainly used for handling accomodation ladders upon the berthing of the vessel as
well as handling the pilot ladders when the vessels enter the harbor.
The axis of the motor and the reeling drum are laid out perpendicularly.
| Rated load | 2000N |
| Support load | 3000N |
| Hoisting speed | 4.8~25.5m/min |
| Capacity of wire | 22m |
| Motor type | YZ-112L-6-H |
| Power | 2.5kw |
| Rotate speed | 1100r/min |
| Power supply | 440v, 60hz |
| Duty factor | 30min |
| Moving mode | manual |
