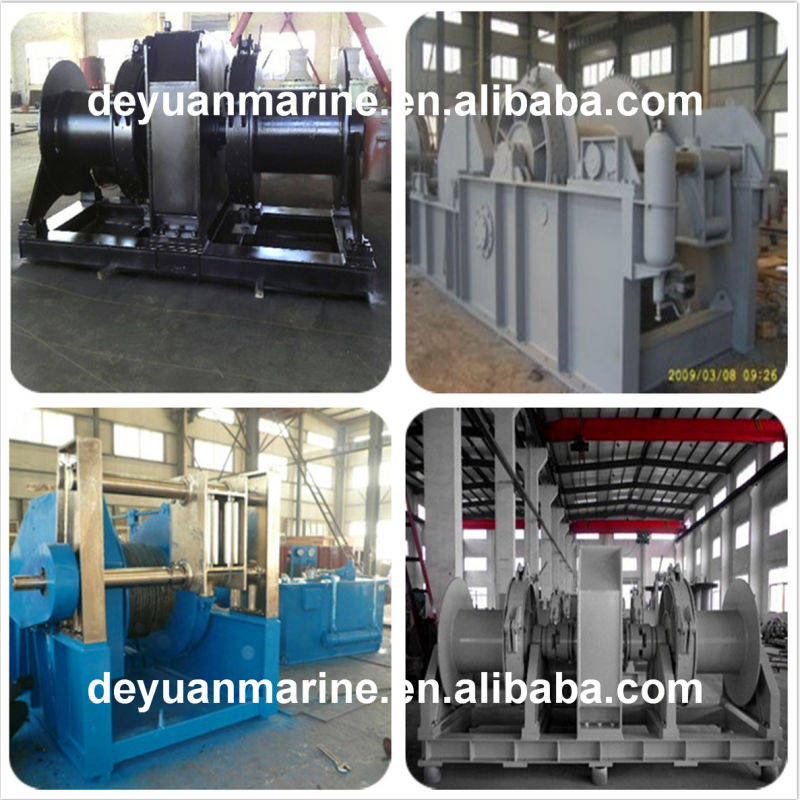

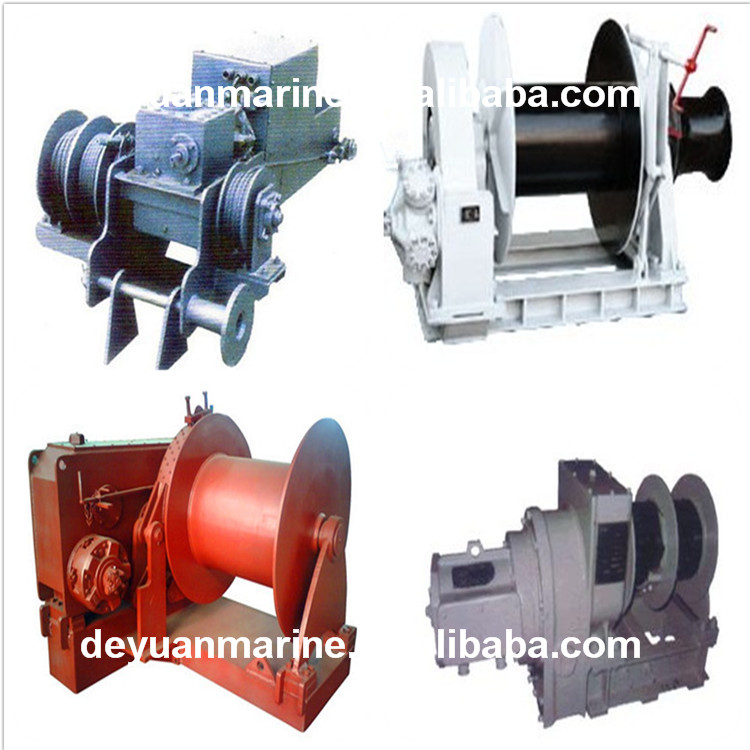

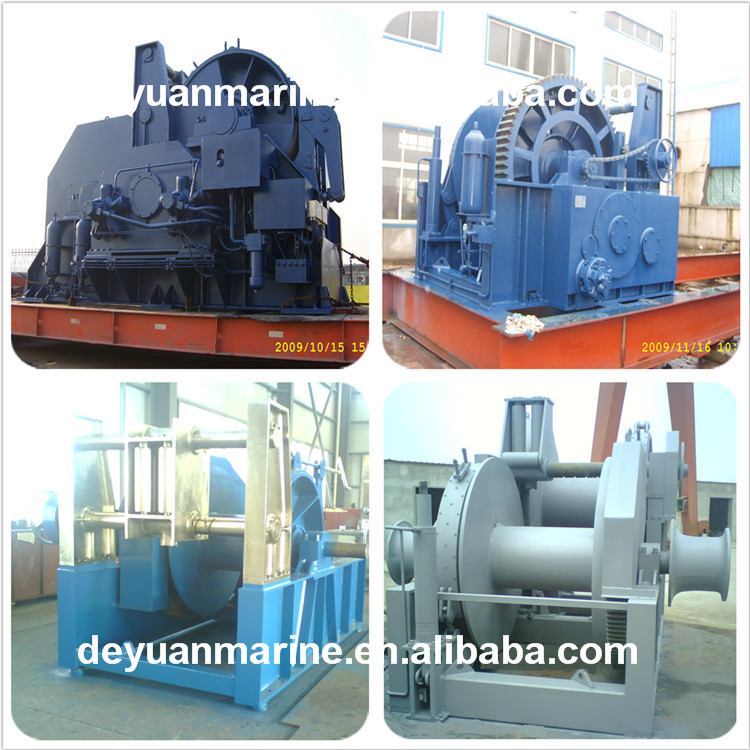

Marine Electric Accommodation Ladder Winches
Mainly used for handing accommodation ladders upon the berthing of the vessel as well as
handling the pilot ladders when the vessels enter the harbor.
The winches are categorized in five specifications: 6KN, 8KN, 10KN, 12KN, 16KN
Model Working load(kn) | Supporting load(kn) | Rope dia | power | Rotate speed (r/min) | |
6KN | 18kn | Φ8 | 380v,50hz | 1.5kw | 1350 |
440v,60hz | 1.8kw | 1665 | |||
8KN | 24kn | Φ9 | 380v,50hz | 2.2kw | 1315 |
440v,60hz | 2.5kw | 1625 | |||
10KN | 30kn | Φ11 | 380v,50hz | 3.7kw | 1350 |
440v,60hz | 4.0kw | 1670 | |||
12KN | 36kn | Φ12 | 380v,50hz | 3.7kw | 1350 |
440v,60hz | 4.0kw | 1670 | |||
16KN | 48kn | Φ13 | 380v,50hz | 5.5kw | 1350 |
440v,60hz | 6.3kw | 1655 |
