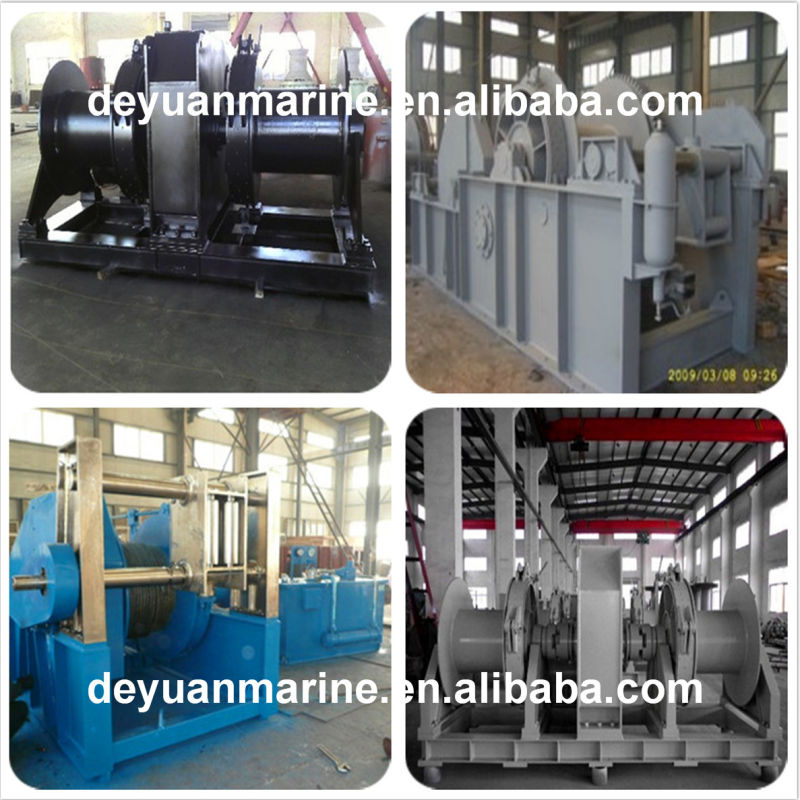

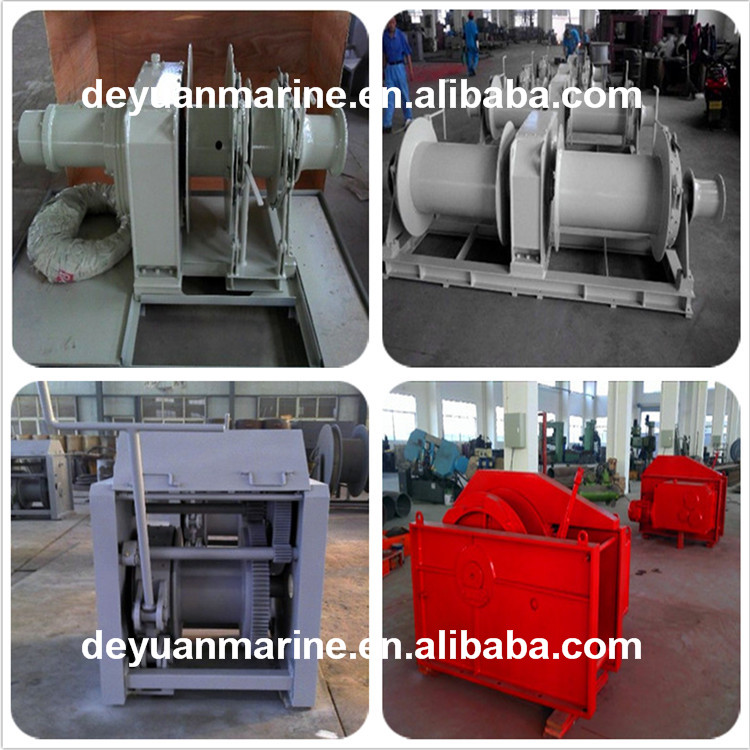

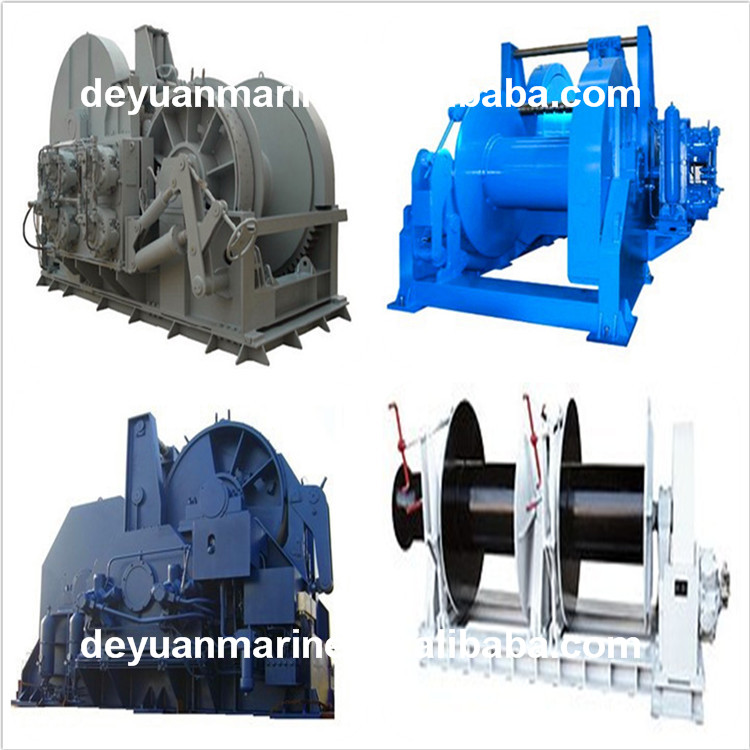

Hydraulic Mooring Winch/Marine Hydraulic Winch:
China Deyuan Marine Fitting Co., Ltd is a professional supplier of marine winches,
we can offer mooring winches, anchor winches, accommodation ladder winches,
rope ladder winches, electric rescue boat winches, pneumatid rope ladder winch and
other anchor windlass, capstan, hydraulic steering gear. Pls contact us for more detials.
Mooring Winch Features:
1) Drive: Hydraulic
2) Configuration: Horizontal arrangement
3) Rope drum: Steel wire rope
4) Rope speed: Complying with ISO requirements
5) Rate pull (1st layer): 130 Tonnes
5) Clutch: Hydrulic operated
6) Brake: Hydraulic operated band failsafe brake
7) Brake Holding: 1st layer static up to 200Tonnes or complying with ISO/ Classification Society requirement
8) Control: Local/ remote control
name | Rated pull (kn) | Rated speed | Drum capacity(m) | Motor power(kw) |
20KN | 20 | ≥12 | Φ15*150 | 11 |
40KN | 40 | ≥15 | Φ17.5*150 | 22 |
50KN | 50 | ≥15 | Φ20.5*180 | 30 |
75KN | 75 | ≥15 | Φ26*200 | 45 |
100KN | 100 | ≥112 | Φ30*200 | 45 |
160KN | 160 | ≥12 | Φ30*250 | 75 |
200KN | 200 | ≥9.6 | Φ41*250 | 75 |
250KN | 250 | ≥9.6 | Φ44.5*250 | 90 |
315KN | 315 | ≥7.8 | Φ52*250 | 90 |
400KN | 400 | ≥7.8 | Φ56*250 | 110 |
450KN | 450 | ≥7.8 | Φ56*250 | 132 |
500KN | 500 | ≥7.8 | Φ56*250 | 132 |
560KN | 560 | ≥6 | Φ56*250 | 132 |
600KN | 600 | ≥6 | Φ56*250 | 132 |
650KN | 650 | ≥6 | Φ56*250 |
Hydraulic Mooring Winch/Marine Hydraulic Winch:
China Deyuan Marine Fitting Co., Ltd is a professional supplier of marine winches,
we can offer mooring winches, anchor winches, accommodation ladder winches,
rope ladder winches, electric rescue boat winches, pneumatid rope ladder winch and
other anchor windlass, capstan, hydraulic steering gear. Pls contact us for more detials.
Mooring Winch Features:
1) Drive: Hydraulic
2) Configuration: Horizontal arrangement
3) Rope drum: Steel wire rope
4) Rope speed: Complying with ISO requirements
5) Rate pull (1st layer): 130 Tonnes
5) Clutch: Hydrulic operated
6) Brake: Hydraulic operated band failsafe brake
7) Brake Holding: 1st layer static up to 200Tonnes or complying with ISO/ Classification Society requirement
8) Control: Local/ remote control
name | Rated pull (kn) | Rated speed | Drum capacity(m) | Motor power(kw) |
20KN | 20 | ≥12 | Φ15*150 | 11 |
40KN | 40 | ≥15 | Φ17.5*150 | 22 |
50KN | 50 | ≥15 | Φ20.5*180 | 30 |
75KN | 75 | ≥15 | Φ26*200 | 45 |
100KN | 100 | ≥112 | Φ30*200 | 45 |
160KN | 160 | ≥12 | Φ30*250 | 75 |
200KN | 200 | ≥9.6 | Φ41*250 | 75 |
250KN | 250 | ≥9.6 | Φ44.5*250 | 90 |
315KN | 315 | ≥7.8 | Φ52*250 | 90 |
400KN | 400 | ≥7.8 | Φ56*250 | 110 |
450KN | 450 | ≥7.8 | Φ56*250 | 132 |
500KN | 500 | ≥7.8 | Φ56*250 | 132 |
560KN | 560 | ≥6 | Φ56*250 | 132 |
600KN | 600 | ≥6 | Φ56*250 | 132 |
650KN | 650 | ≥6 | Φ56*250 |
