15PPM Bilge Water Separator
The bilge separator can handle all kinds of fuels used by ships, including the residual oil with extremely high density and emulsified oil mixture, can be separated effectively, and the effluent oil content is no more than 2ppm.
It is fully conform to domestic voyage ship rules of statutory inspection techniques", MSA, The People's Republic of China (2008).
The amended Article 14 in by-law I of "Convention on Prevention of Pollution from Ships", IMO MARPOL.73/78
"Revised guidelines and specifications for pollution prevention equipment for machinery space bilge of ships", IMO.MEPC.107. (49).
Series 15ppm bilge water separator design not only pursuits extremely high emission standards, but also gives consideration to meet the needs of ship-owners and shipyards. The advantage of the HBN product is created basing on this design idea.

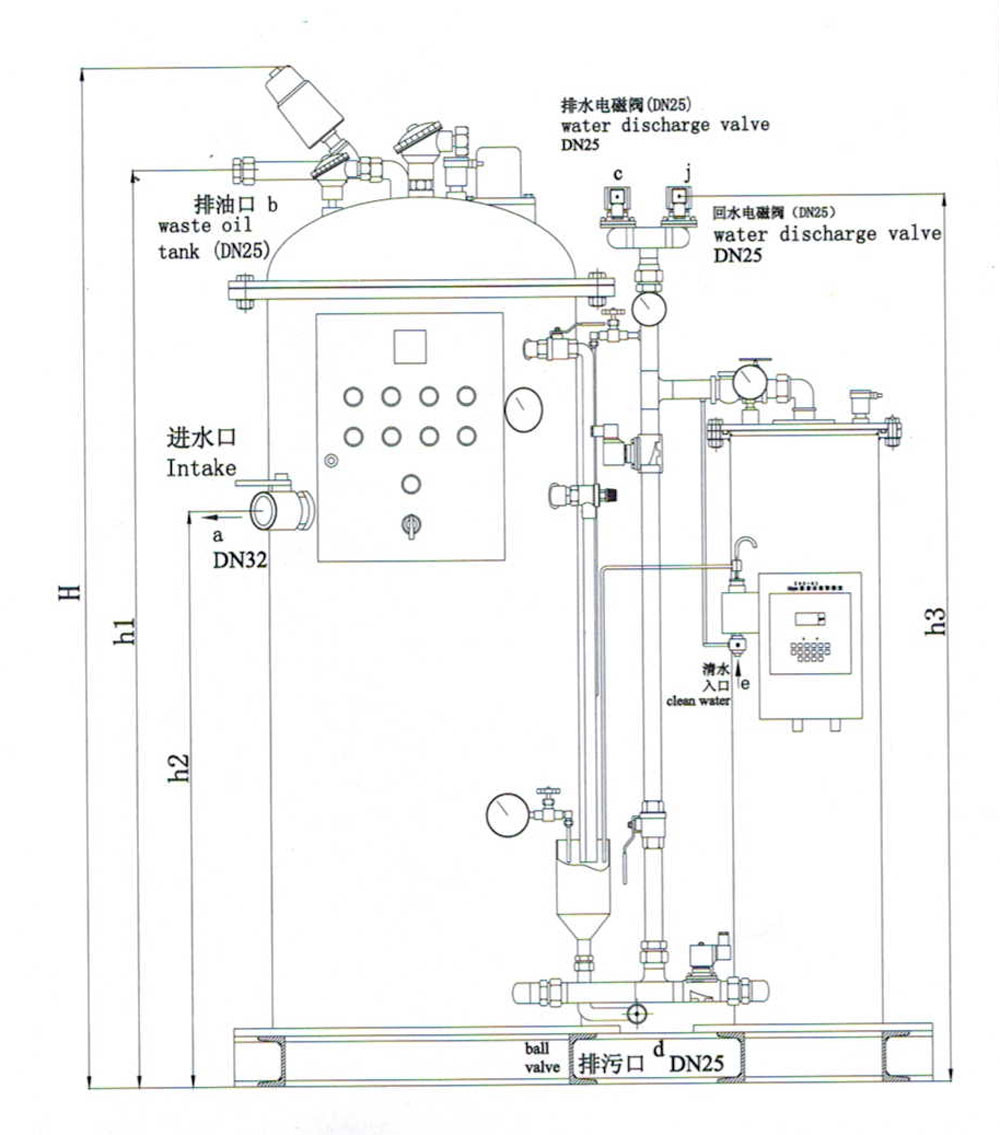

| Model Number | Dimension And Installation Size | Weight | |||||||||
| H | h1 | h2 | A | a1 | a2 | a3 | B | b1 | b2 | Kg | |
| JBN-1.0 | 1390 | 1250 | 830 | 1146 | 488 | 358 | 150 | 554 | 511 | 385 | 330 |
| JBN-2.0 | 1475 | 1350 | 930 | 1204 | 545 | 358 | 150 | 618 | 575 | 385 | 417 |
