DEYUAN MARINE
DY-2.0
2.0M3/H
1.10kW
option
included
#8 1900*1120mm
1700mm
1260/2260kg
30-50KDWT
Standard expert package
20 days after deposit payment

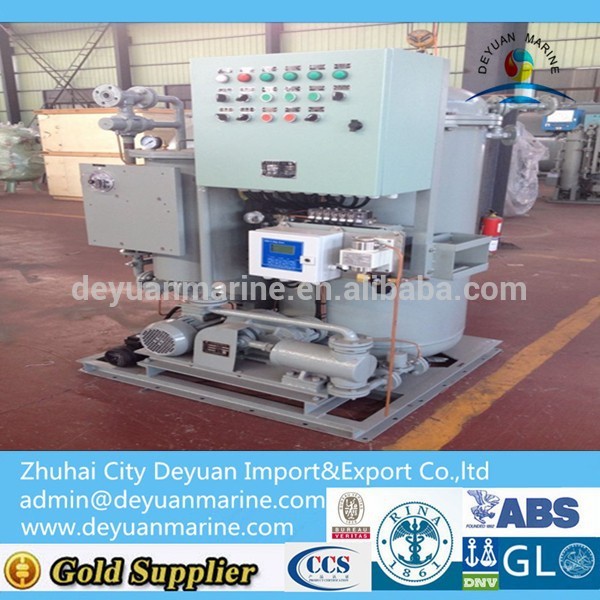

2.0M3/H Oil Water Separator
1. Capacity: 2.0M3/h
2. Oil content in effluent water: less than 15ppm.
3. Certificate: CCS,DNV,ABS,BV,RS,GL.
4. Usage: ships and vessels.
5.Standard: IMO MEPC107(49).
15ppm Oily Water Separators
15ppm Bilge Separator is the professional equipment used to treat bilge water, which is composed of electrical control system and poston pump, and discharged water treated by the separator satisfy stated discharge standard. The equipment structure is reasonable and tightness, convenient for installation and maintenance.
Type | DY-0.25 | DY-0.5 | DY-1.0 | DY-1.50 | DY-2.0 | DY-2.5 | DY-3.0 | DY-4.0 |
Rated capacity (M3/H) | 0.25/0.31 | 0.5/0.62 | 1.0/1.25 | 1.5/1.87 | 2/2.25 | 2.5/3.12 | 3/3.75 | 4.0/5.0 |
Power (kw) | 0.75 | 1.10 | 1.10 | 1.10 | 2.20 | 2.20 | 3.0 | 3.0 |
Steam heater M2/kw | --- | --- | 1/30 | 1.5/45 | 2/60 | 2.5/75 | 3/90 | 4/120 |
15ppm Bilge alarm | including | including | including | including | including | including | including | including |
base | #5 | #6 | #6 | #8 | #8 | #8 | #10 | #10 |
Dimension | 1000*600*1320 | 1100*690*1460 | 1050*1084*1500 | 1100*1130*1660 | 1900*1120*1700 | 1700*1500*1900 | 2400* 1700*2020 | 2500* 2000*1820 |
Dry weight/ Net weight | 300/450 | 600/800 | 800/860 | 1060/1810 | 1260/ 2260 | 1500/ 2800 | 1800/ 3200 | 2100/ 3900 |
Suitable for vessels | <1000 DWT | 1000~5000 DWT | 5~10 KDWT | 10~30 KDWT | 30~50 KDWT | 50~100 KDWT | 100~200 KDWT | 100~300 KDWT |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Laini
E-mail: sales1[at]deyuanmarine[dot]com
Skype: marinesales1
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: + 86 - 13672785832
Web: http://www.deyuanmarine.com
