DEYUAN MARINE
DY-1.00
1.0M3/H
0.75kW
option
included
#6 1050*1080mm
1600mm
800/860kg
5000-10KDWT
Standard expert package
20 days after deposit payment

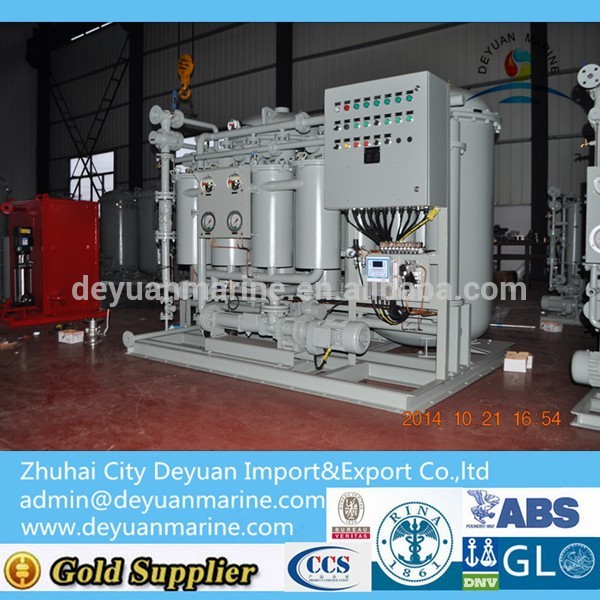

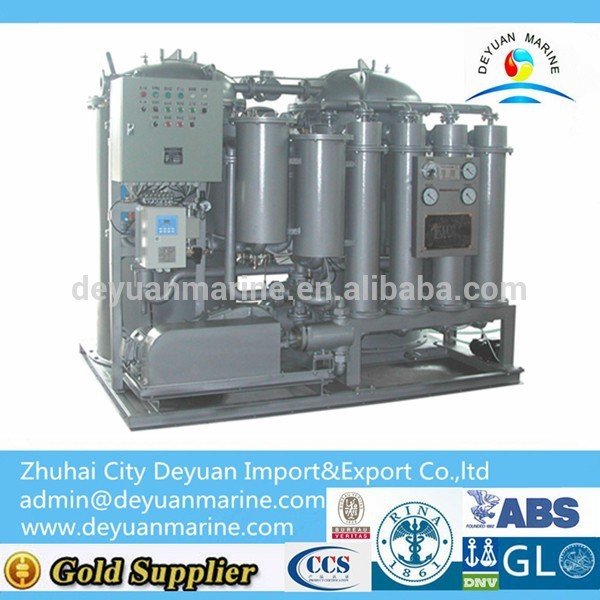

1.00M3/H Oil Water Separator
1. Capacity: 1.00M3/h
2. Oil content in effluent water: less than 15ppm.
3. Certificate: CCS,DNV,ABS,BV,RS,GL.
4. Usage: ships and vessels.
5.Standard: IMO MEPC107(49).
15ppm Oily Water Separators
15ppm Bilge Separator is a kind of enviromental protection product designed based on international Maritime Organization IMO MEPC.107(49) standard,the oil content in effluent water less than 15ppm.
Type | DY-0.25 | DY-0.5 | DY-1.0 | DY-1.50 | DY-2.0 | DY-2.5 | DY-3.0 | DY-4.0 |
Rated capacity (M3/H) | 0.25/0.31 | 0.5/0.62 | 1.0/1.25 | 1.5/1.87 | 2/2.25 | 2.5/3.12 | 3/3.75 | 4.0/5.0 |
Power (kw) | 0.75 | 1.10 | 1.10 | 1.10 | 2.20 | 2.20 | 3.0 | 3.0 |
Steam heater M2/kw | --- | --- | 1/30 | 1.5/45 | 2/60 | 2.5/75 | 3/90 | 4/120 |
15ppm Bilge alarm | including | including | including | including | including | including | including | including |
base | #5 | #6 | #6 | #8 | #8 | #8 | #10 | #10 |
Dimension | 1000*600*1320 | 1100*690*1460 | 1050*1084*1500 | 1100*1130*1660 | 1900*1120*1700 | 1700*1500*1900 | 2400* 1700*2020 | 2500* 2000*1820 |
Dry weight/ Net weight | 300/450 | 600/800 | 800/860 | 1060/1810 | 1260/ 2260 | 1500/ 2800 | 1800/ 3200 | 2100/ 3900 |
Suitable for vessels | <1000 DWT | 1000~5000 DWT | 5~10 KDWT | 10~30 KDWT | 30~50 KDWT | 50~100 KDWT | 100~200 KDWT | 100~300 KDWT |
