DEYUAN
China (Mainland)
DEYUAN
CY-2
Steel
2003 - 2010
New
12.1 - 16m
Diesel
Standarnd Export Packing
20 days

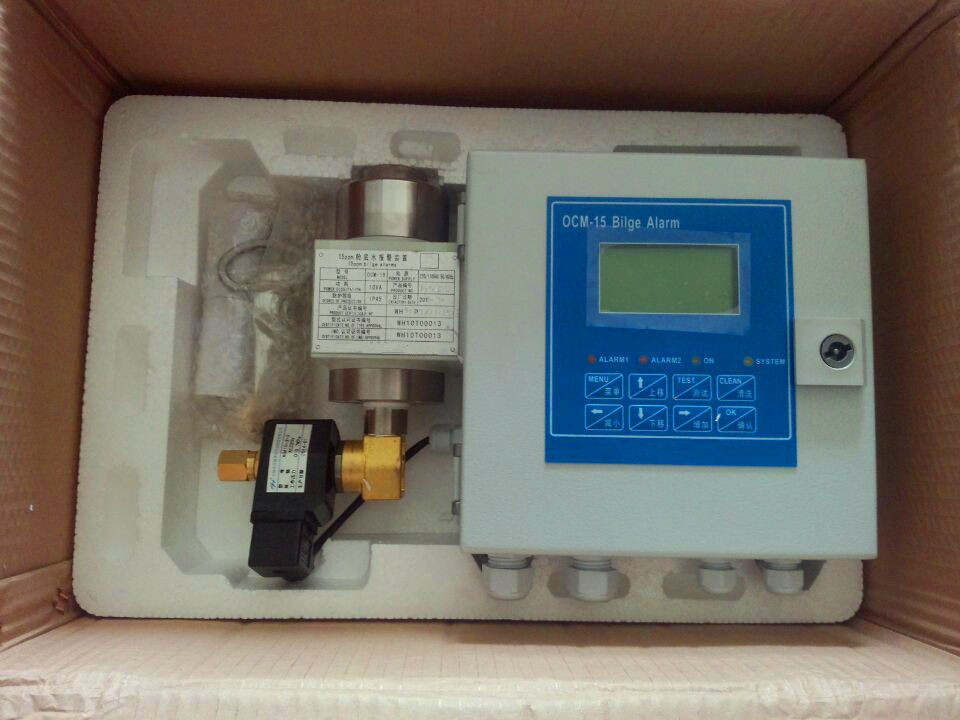

15ppm Bilge Alarm is an important part for bilge water separation system, mainly used to
continuously monitor oily wastewater in bilge as well as chemical industry, oil field and environmental
protection and others, with followed function and characteristics, result display, audio-visual alarm when
the oily waste water is more than 15ppm, oily wasterwater discharge control, 15ppm oil-water separator
working station display, printer for history storage and track.
The device is approvaled by CCS in accordance with the latest requirement of MARPOL 73/78
Revised Annex I and MEPC 107(49).
| Unique system of onboard replacement of the measuring cell |
| Measuring cell simple to replace due to wireless design |
| Easy to operate with 4 only pushbuttons |
| Userfriendly menu |
| Compact design |
| 32 character LCD, with LED background light |
| Relays and input are protected by “PTC” resistor fuses. Fuses are reset by disconnection of power supply – no regular fuses to replace |
| System running status shown on LCD in real time |
| Suitable for both newbuildings, as well as existing ships |
| Can be attached to any oily water separator type |
| Technical Data |
| Measuring range: 0~30 ppm |
| Alarm 1: 1~15 ppm adjustable |
| Alarm 2: General alarm to control room |
| Supply voltage: 110/220 VAC or 24 VAC |
| Cleaning: Relay output for solenoid valve same as supply voltage. Protection: IP 65. Printout capability: RS 232 adapter |
| Overall dimensions: 210×200×100mm (L×W×D) |
| Net weight: Power module 1,2 kg/measuring cell 1,1 kg |
