CY-2A Mini Type 15 PPM Bilge Alarm

  • DEYUAN

  • China (Mainland)

  • DEYUAN

  • CY-2A

  • Steel

  • 2003 - 2010

  • New

  • 12.1 - 16m

  • Diesel

  • Standarnd Export Packing

  • 20 days



15ppm Bilge Alarm is an important part for bilge water separation system, mainly used to
continuously monitor oily wastewater in bilge as well as chemical industry, oil field and environmental
protection and others, with followed function and characteristics, result display, audio-visual alarm when
the oily waste water is more than 15ppm, oily wasterwater discharge control, 15ppm oil-water separator
working station display, printer for history storage and track.


The device is approvaled by CCS in accordance with the latest requirement of MARPOL 73/78
Revised Annex I and MEPC 107(49).



Installation Size



Main Specification:

Unique system of onboard replacement of the measuring cell
Measuring cell simple to replace due to wireless design
Easy to operate with 4 only pushbuttons
Userfriendly menu
Compact design
32 character LCD, with LED background light
Relays and input are protected by “PTC” resistor fuses. Fuses are reset by disconnection of power supply – no regular fuses to replace
System running status shown on LCD in real time
Suitable for both newbuildings, as well as existing ships
Can be attached to any oily water separator type
Technical Data
Measuring range: 0~30 ppm
Alarm 1: 1~15 ppm adjustable
Alarm 2: General alarm to control room
Supply voltage: 110/220 VAC or 24 VAC
Cleaning: Relay output for solenoid valve same as supply voltage. Protection: IP 65. Printout capability: RS 232 adapter
Overall dimensions: 210×200×100mm (L×W×D)

Net weight: Power module 1,2 kg/measuring cell 1,1 kg

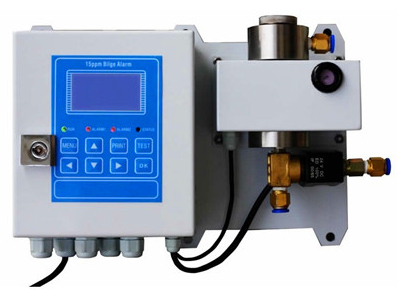

舱底水报警装置_副本_副本
