CYSC oil water separator is used to treat ship’s bilge water ,make the oil content in effluent water≤15ppm,satisfy with the requirements of IMO MEPC.107(49). The device consists with two stages separator, dedicated pumps, coarse strainer, electric control box etc. THE device can automatic discharge of oil, automatic alarm and manual discharge oil in emergency.
CYSC oil-water separator is suitable for treating the large bilge water. The device work stably. Within the scope of the tilt 22.5 ° in any direction, all can work reliably.
Description and Technical data
| Data Model | CYSC(USH) -0.1 | CYSC(USH) -0.25 | CYSC(USH) -0.5 | CYSC(USH) -1.0 | CYSC(USH) -1.5 | CYSC(USH) -2.0 |
| Capacity(M3/H) | 0.1 | 0.25 | 0.5 | 1 | 1.5 | 2 |
| Working Pressure | <0.2Mpa | |||||
| Pump and motor | Electric Peciprocating Pump | |||||
| 0.25kw | 0.25kw | 0.37kw | 0.55kw | 0.75kw | 0.75kw | |
| (or)Electric single pump | ||||||
| 0.75kw | ||||||
| Standard of Discharged water | <15ppm | |||||
| Suction Height | 5M | 6M | ||||
| Electri control panel | DC 110V AC3-phase 380V 50Hz DC 220v | |||||
| Oil discharge Control | Automatic and Control | |||||
| Heating | Electric Heater | |||||
| Weight(kg) | 75 | 125 | 210 | 445 | 780 | 910 |

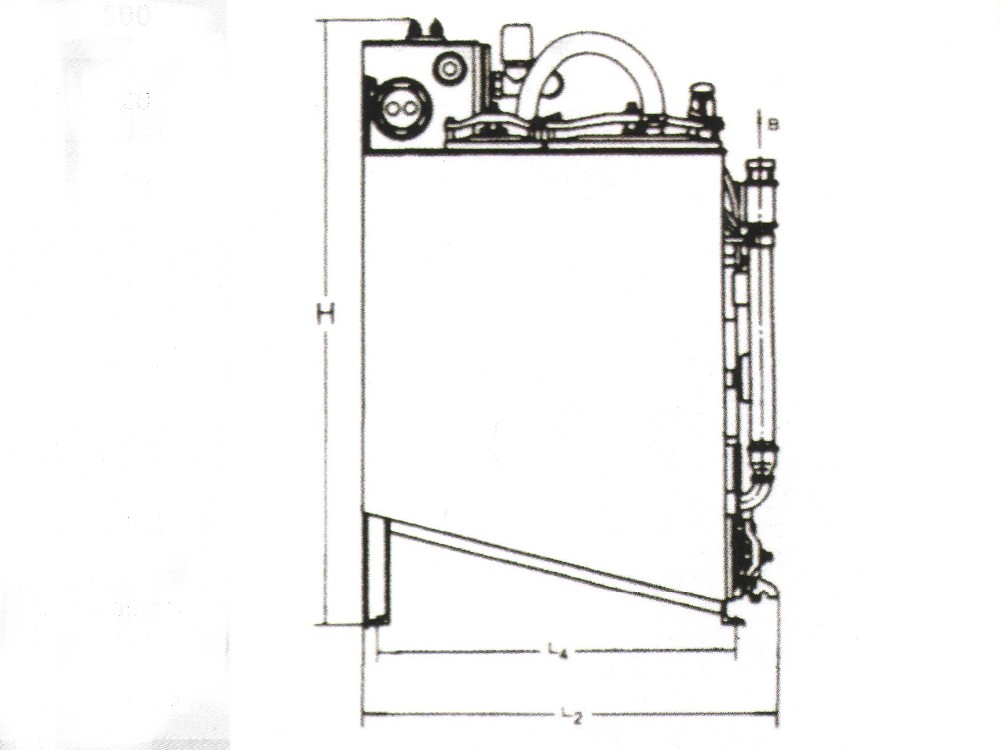

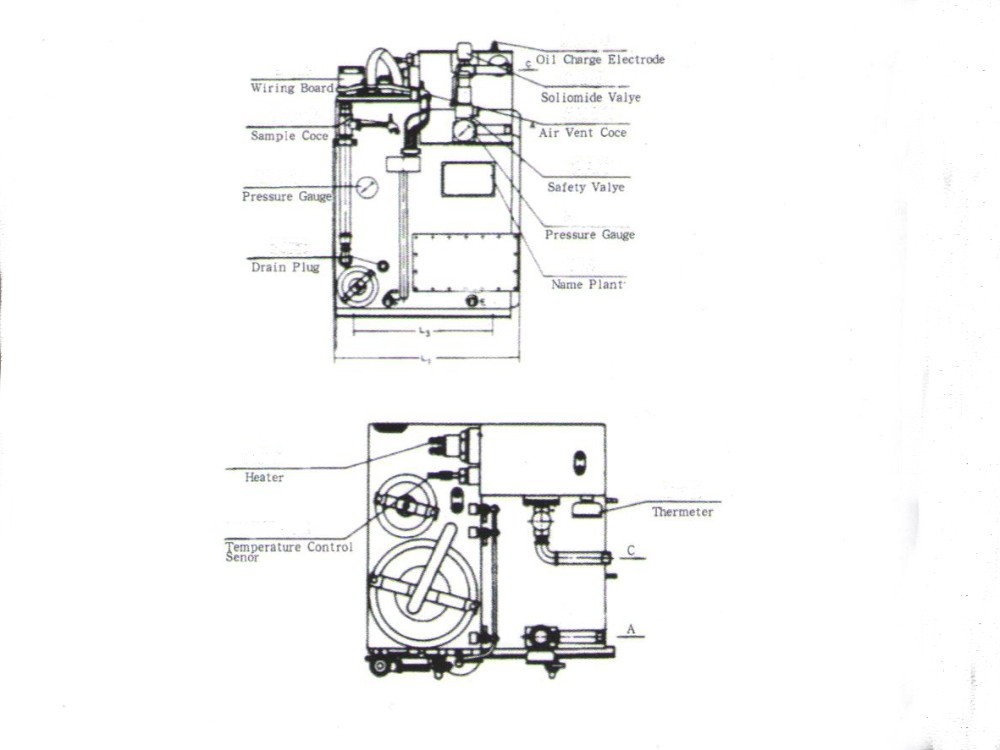

| Model | | CYSC(USH) -0.1 | CYSC(USH) -1.0 | CYSC(USH)- 0.25 | CYSC(USH)- 0.5 | CYSC(USH)- 1.5 | CYSC(USH)- 2.0 |
| Length | L1 | 580 | 970 | 440 | 610 | 1140 | 1230 |
| Width | L2 | 330 | 800 | 470 | 600 | 760 | 920 |
| Height | H | 830 | 1170 | 730 | 920 | 1400 | 1590 |
| Oil-water inlet | A | DN15 | DN32 | DN20 | DN20 | DN45 | DN45 |
| Sep.water outlet | B | DN15 | DN25 | DN20 | DN20 | DN25 | DN25 |
| Sep.oil outlet | C | DN15 | DN25 | DN20 | DN20 | DN25 | DN25 |
| Air vent cock | D | DN8 | DN8 | DN8 | DN8 | DN8 | DN8 |
| Prin.drin cock | E | DN15 | DN20 | DN15 | DN15 | DN25 | DN25 |
| Sec.drin cock | F | DN15 | DN20 | DN15 | DN15 | DN25 | DN25 |
| Base | L3 | 260 | 630 | 250 | 360 | 750 | 900 |
| Base | L4 | 250 | 700 | 485 | 515 | 670 | 716 |
