Explosion-proof Oil Content Meter

  • DEYUAN

  • China (Mainland)

  • DEYUAN

  • CY-2

  • Electronic

  • Oil Content Meter

  • Steel

  • 2003 - 2010

  • New

  • 12.1 - 16m

  • Diesel

  • Standarnd Export Packing

  • 20 days



OCD1A Explosion-proof oil content meter is an online testing instrument for micro oil content in waste water.It's used in the circustances of explosion-proof,such as sites concerning petrochemical waste water continually,build up alarm reporting for over-limitation and control the volume of discharge waste water.



Technical Specification

Testing Type Continuously online testing
Measurement range 0~199ppm
Precision 0-20 ppm±2ppm,20-199ppm±10%
Alarm indication Red LED
Pressure of sample water 0.01~0.6Mpa
Flow rate 0.15-4L/min
Working voltage 220VAC,50/60Hz
Power 25W
Signal output 4~20Ma or 0~5VDC
Water-proof protection IP45
Mounting dimension 420×210mm
Boundary dimension 460×300×184mm
Weight 28KG

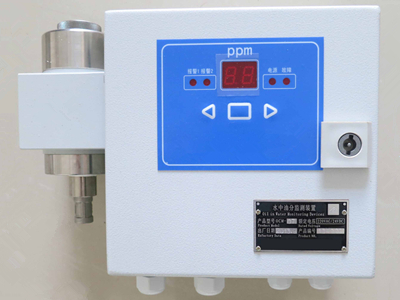

OCM-07型水中油分监测装置
