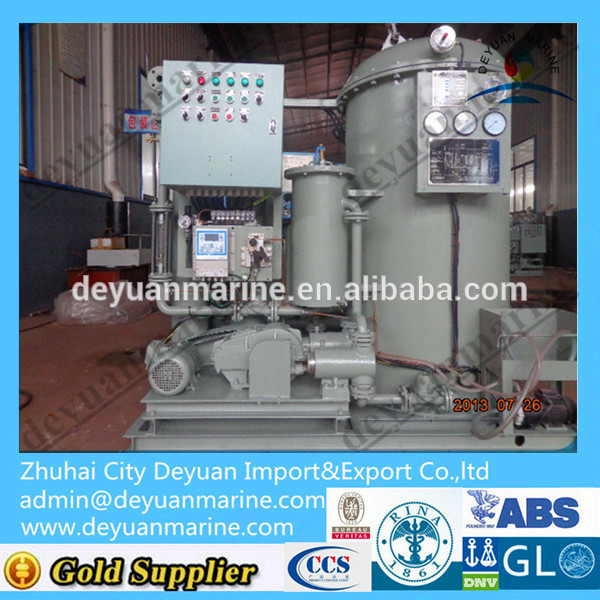

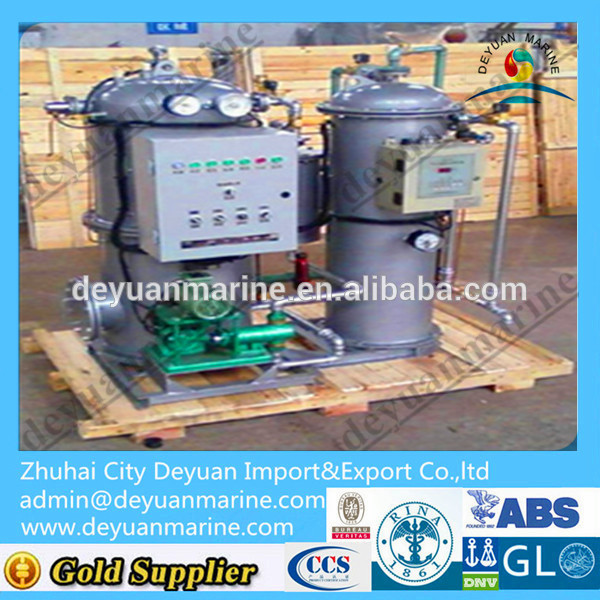

1.5M3/H Oil Water Separator



1. Can endure the hull's libration as the ship is sailing and other local livration that is caused by other machines,

2. Should work functionally as the working medium temperature is between 5 and 40°C

3. Should work functionally when the relative humidity of the air environment is less than 90%

4. Energy sources should be offered,which is used for the demand of the electric piston pump and the electric heater and so on.

5.Pressure air for three-way air valve should be offered, the pressure range is from 0.6MPa to 0.8MPa.





15ppm Oily Water Separators



15ppm Bilge Separator is the professional equipment used to treat bilge water, which is composed of electrical control system and poston pump, and discharged water treated by the separator satisfy stated discharge standard. The equipment structure is reasonable and tightness, convenient for installation and maintenance.



Type	DY-0.25	DY-0.5	DY-1.0	DY-1.50	DY-2.0	DY-2.5	DY-3.0	DY-4.0
Rated capacity (M3/H)	0.25/0.31	0.5/0.62	1.0/1.25	1.5/1.87	2/2.25	2.5/3.12	3/3.75	4.0/5.0
Power (kw)	0.75	1.10	1.10	1.10	2.20	2.20	3.0	3.0
Steam heater M2/kw	---	---	1/30	1.5/45	2/60	2.5/75	3/90	4/120
15ppm Bilge alarm	including	including	including	including	including	including	including	including
base	#5	#6	#6	#8	#8	#8	#10	#10
Dimension	1000*600*1320	1100*690*1460	1050*1084*1500	1100*1130*1660	1900*1120*1700	1700*1500*1900	2400* 1700*2020	2500* 2000*1820
Dry weight/ Net weight	300/450	600/800	800/860	1060/1810	1260/ 2260	1500/ 2800	1800/ 3200	2100/ 3900
Suitable for vessels	<1000 DWT	1000~5000 DWT	5~10 KDWT	10~30 KDWT	30~50 KDWT	50~100 KDWT	100~200 KDWT	100~300 KDWT
