DEYUAN
China (Mainland)
DEYUAN
YWC serie
Wooden case packaging.
About 15 to 30 days.

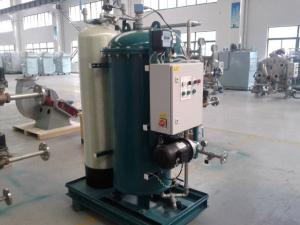

Marine Bilge Water Separator :
This Marine Bilge Water Separator can treat in bilge water effectively,make the oil content in effluent water≤15ppm,satisfy with the requirements of IMO MEPC.107(49).
The device adopts the combination of 1st stage, cone plate gravity and coalesce separation
2nd stage, fiber filter and 3rd stage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
Type | YWC- | |||||||||
Technical Specifications | 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | |
Rated capacity(m3/h) | 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | |
Oil content of the discharged water | Not more than 15ppm | |||||||||
Power of the electric heater(kw) | 1kw | 3kw | 6 | 6 | 6 | 6 | 6 | 12 | 12 | |
Electrical System | AC 380V,50Hz,3φ/ AC 415V,50Hz,3φ/AC 440,60Hz,3φ/AC 480V,60HZ,3φ | |||||||||
Power of the electric motor | 0.37kw | 0.55kw | 0.75kw | 1.1kw | 1.1kw | 1.5kw | 1.5kw | 2.2kw | 2.2kw | |
Suction head | Not more than 6m-H2O | |||||||||
Pressure of the discharged water | 5-10m-H2O | |||||||||
Outline Dimension(Length×Width×Height)(mm) | 1000×600 | 1100×690 | 1050×1000 | 1100×1130 | 1900×1120 | 1900×1120 | 1700×1500 | 2280×1700 | 2590×2000 | |
×1250 | ×1460 | ×1620 | ×1650 | ×1700 | ×1900 | ×1900 | ×1900 | ×1900 | ||
base | 5# | 6# | 6# | 6# | 8# | 8# | 8# | 10# | 10# | |
Weight | Dry Weight | 400 | 600 | 800 | 1060 | 1260 | 1500 | 1800 | 2100 | 2500 |
Wet Weight | 550 | 900 | 1200 | 1650 | 2260 | 2800 | 3200 | 3900 | 4600 |
