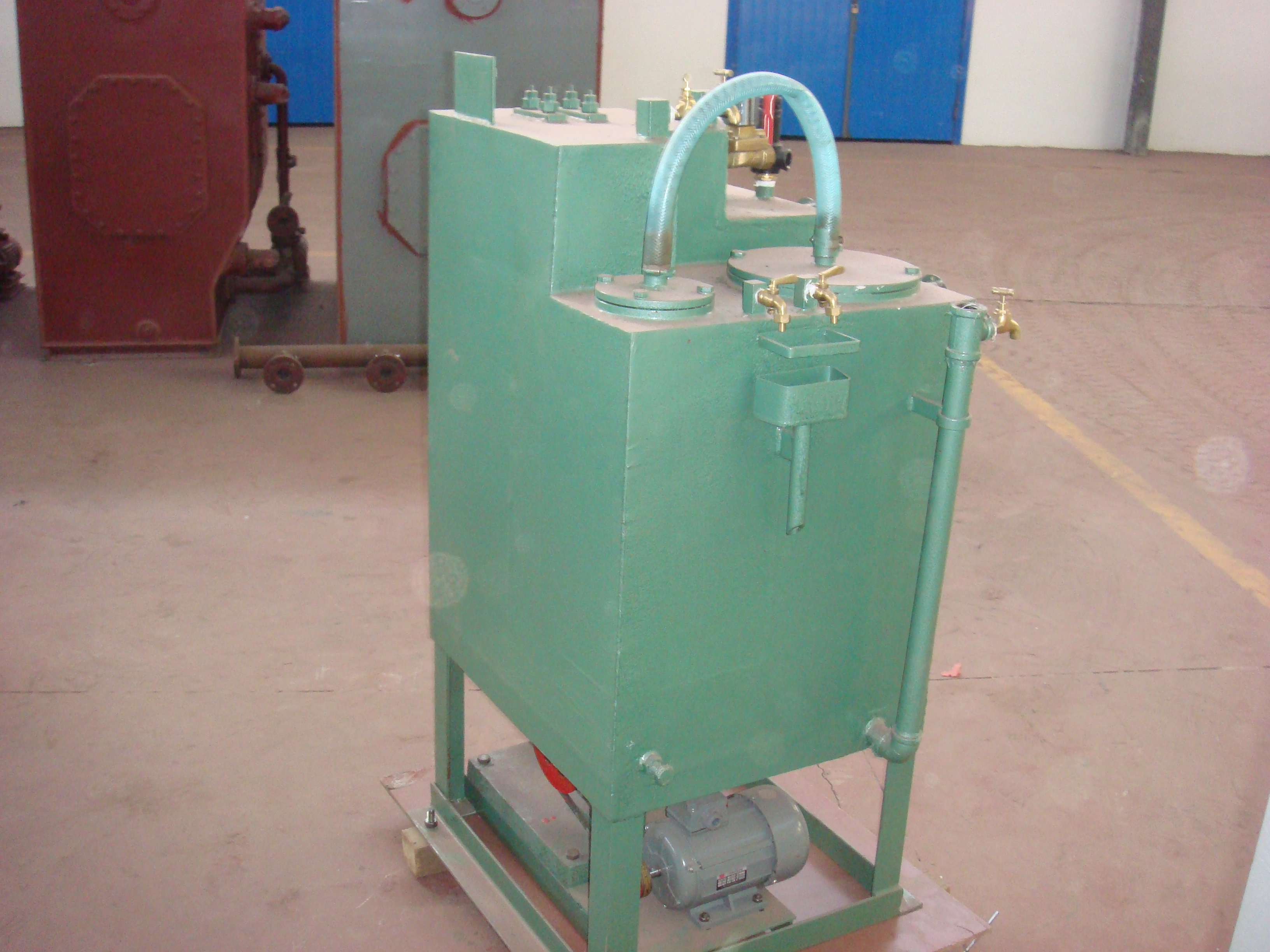

Small-sized marine oil water separator:
Feature:
1.Small sized.
2.Certificate: Mill certificate.
3.Conform to MEPC 107(49)
The oil water separating device can be applied to small sized vehicle ship in freshwater,and meets the reqruiements of discharging standard of MEPC.107(49). The device consists of oil water separator,grasshopper,electricity control box and something else. With compact structure,it is easy to operate,install and maintain.Besides that,it cau
ses no water pollution and saves oil and energy.
Oleaginous concetration of the contaminated water in the inlet:lowet than 150000PPM.
Working principle:It was designed according to the principle of gravity separation and coalescene,which composes the coarse separation and precise separation.
Main technical parameter:
Treatment capability | 0.1 m3/hour | 0.25 m3/hour |
Discharging standard | Less than 15ppm | |
Working pressure | Less than 0.2Mpa | |
Matching water pump | CDZ-100 | CDZ-250 |
Water pump, | AC380V or according to the demands of customers. | |
Way of oil drainage | Manual / Automatic | |
Size of sharp | 640x370x670mm | 690x405x800 |
Diameter of inlet and outlet pipe | 1/2" pipe | |
Weight | 35kg | 45kg |
We still have other treatment capacity model,please contact us if you interested in it.
