Magnetic Float Type Level Gauge:

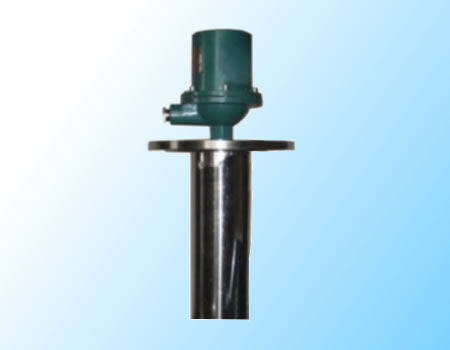

UHZ-512 Type Marine Ship Magnetic Float Type Level Gauge :
Under low temperature,some medium is easy freeze and poor fluidity,the level gauge is mainly used to measure and control this kind of medium in the tank.
Indication accuracy: ±20mm
Nonimal length: 0.5 meter to 6 meter
Medium gravity: equal or greater than 0.5 Working temperature 1.0(1.6,2.5)MPa
Medium temperature: equal or less than 200 centigrade
Medium viscosity:equal or less than 0.02pa.S
Steam pressure:equal or less than 0.8MPa
Connection flange:GB2506-2005 DN20 PN16
Alarm switch: AC220V 1.0A remaining type(optional)
Output signal :DC24V 4~20mA (optional)
Matched valve:shut-off valve ,self-close valve,ball valve(optional)
Magnetic Float Type Level Gauge:
UHZ-512 Type Marine Ship Magnetic Float Type Level Gauge :
Under low temperature,some medium is easy freeze and poor fluidity,the level gauge is mainly used to measure and control this kind of medium in the tank.
Indication accuracy: ±20mm
Nonimal length: 0.5 meter to 6 meter
Medium gravity: equal or greater than 0.5 Working temperature 1.0(1.6,2.5)MPa
Medium temperature: equal or less than 200 centigrade
Medium viscosity:equal or less than 0.02pa.S
Steam pressure:equal or less than 0.8MPa
Connection flange:GB2506-2005 DN20 PN16
Alarm switch: AC220V 1.0A remaining type(optional)
Output signal :DC24V 4~20mA (optional)
Matched valve:shut-off valve ,self-close valve,ball valve(optional)
