YWC-1.00 Oil Water Separating treater

  • DEYUAN

  • Chongqing, China (Mainland)

  • DEYUAN

  • YWC-1.00

  • Wooden case packaging.

  • About 15 to 30 days.



YWC-1.00 Oil Water Separating treater :

Oil Water Separating treater:

This Marine Bilge Water Separator can treat in bilge water effectively,make the oil content in effluent water≤15ppm,satisfy with the requirements of IMO MEPC.107(49).

Working Principle:

The device adopts the combination of 1st stage, cone plate gravity and coalesce separation

2nd stage, fiber filter and 3rd stage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).

Technical Data:

Rated capacity 1.00 m3 per hour
Power of the electric heater 6kw
Power of the electric motor 0.75kw
Outline Dimension(LxWxH) 1050x1000x1620
Base 6#
Weight Dry Weight 800
Wet Weight 1200
Applicable Vessel 5-10KDWT
Optional electrical system AC 380V/50Hz/3 phase,AC 415V/50Hz/3 phase,
AC 440/60Hz/3 phase,AC 480V/60HZ/33 phase.
Oil content of the discharged water Not more than 15ppm
Suction head Not more than 6m-H2O
Pressure of the discharged water 5-10m-H2O

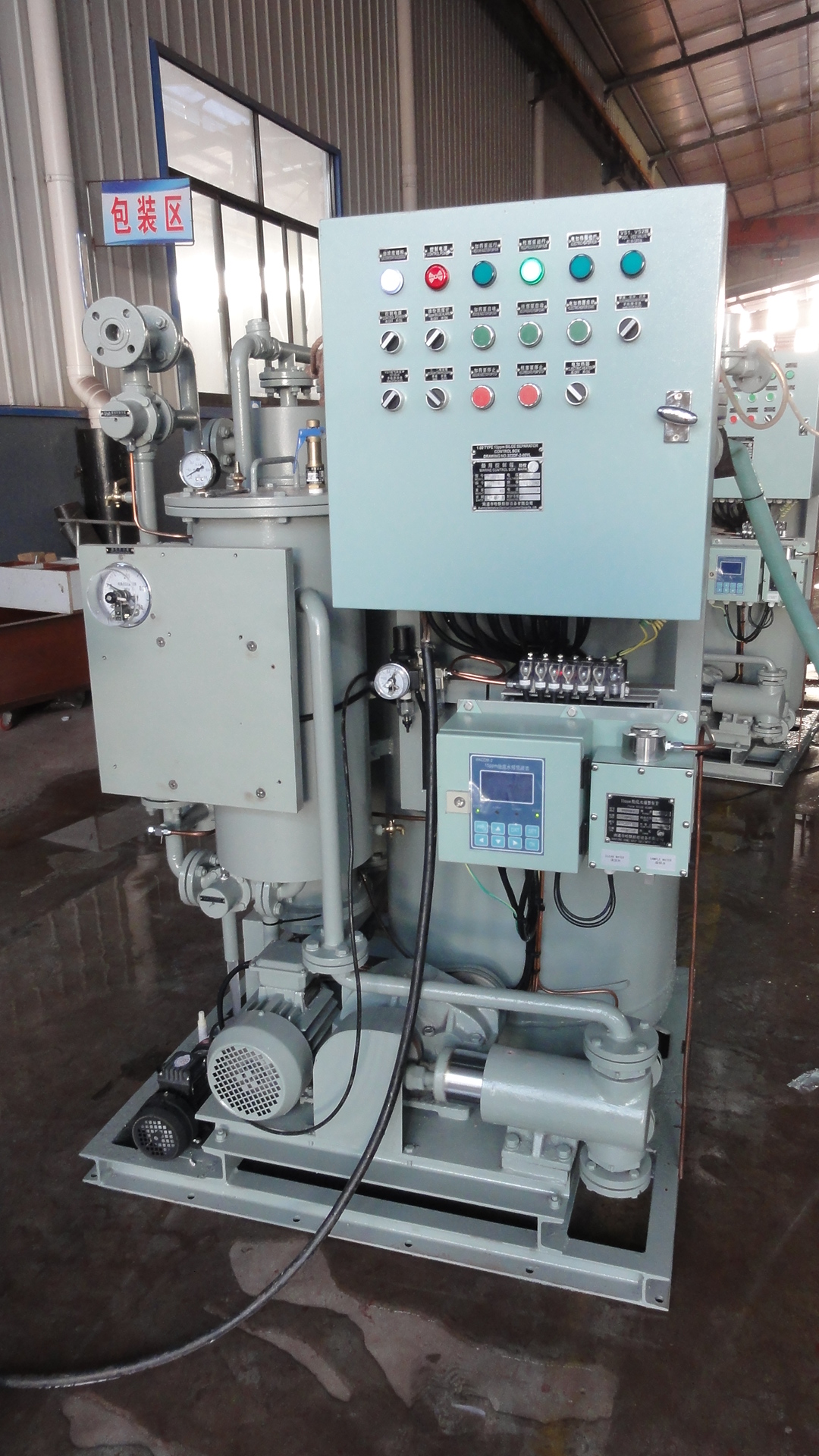

DSC05352
