YWC-2.00 Ballast Water Separator


  • China (Mainland)


  • YWC-2.0

  • Wooden case packaging.

  • About 15 to 30 days.

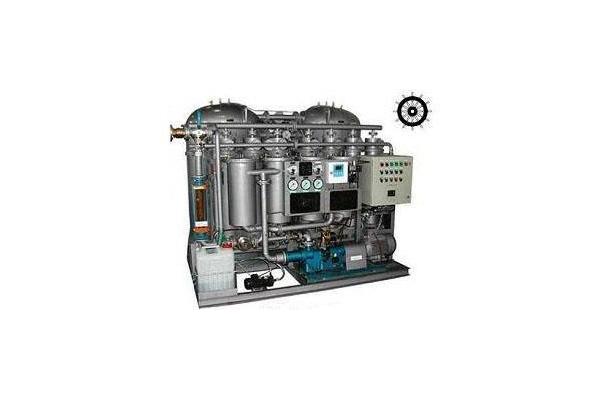

YWC-2.00 Ballast Water Separator  :

Ballast Water Separator:

Rated capacity:2.00 m3/h

It is a kind of environmental protection product designed based on international maritime IMO.MEPC.107(49) standard,the oil content in effluent water equal or less than 15ppm.The resolution made the fully new requirement referring to 15ppm bilge treatment plant in Annex I of MARPOL73/78.

It can effectively dispose all kinds of bilge water including fuel oil, high-density residual oil and emulsion mixture combined with black ferric oxide and surfactant.It can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content from our ballast oily water separator can meet any standards of Environment Bureau in China.

The smallest type is 0.25 m3/hour capacity which can be installed on ship less than 1 KDWT .The biggest type is 5.00 m3/hour capacity which can be installed on ship more than 300 KDWT.

Technical Data:

Rated capacity 2.00 m3 per hour
Power of the electric heater 6kw
Power of the electric motor 1.1kw
Outline Dimension(LxWxH) 1900x1120x1700
Base 8#
Weight Dry Weight 1260
Wet Weight 2260
Applicable Vessel 30-50DWT
Optional electrical system AC 380V/50Hz/3 phase,AC 415V/50Hz/3 phase, AC 440/60Hz/3 phase,AC 480V/60HZ/33 phase.
Oil content of the discharged water Not more than 15ppm
Suction head Not more than 6m-H2O
Pressure of the discharged water 5-10m-H2O
