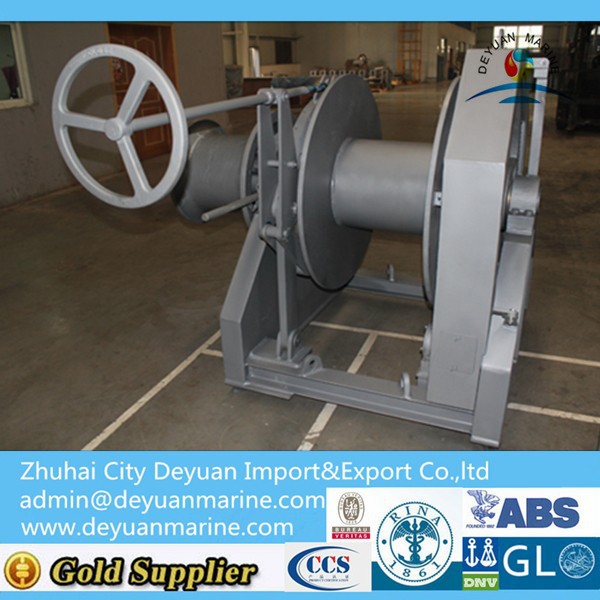

10-447 KN Marine hydraulic tugger winches with single drum for decking machine

Availability:
  • Deyuan Marine

10-447 KN Marine equipment hydraulic tugger winches with single drum for decking machine



Anchor windlass/towing winches

Anchor windlass/mooring winches

*Anchor windlass chain size:16 to 97mm.

*Anchor windlass/mooring winch: up to 200T brake holding.

*Anchor windlass/towing winch: up to 300T brake holding.

*Towing winch: up to 300T brake holding.





Anchor windlass/towing winches; anchor windlass/mooring winches

Model

AWT-16~97

AWM-16~97

Drive

Hydraulic or electric

Type

Single or double gypsy/ single or double drum

Dia.Chain

φ16~97mm(U2,U3)

φ16~97mm(U2,U3)

Rated load

10KN~447KN

10KN~447KN

Drum load

10N~2000KN

10N~2000KN

Drum brake load

50KN~3000KN

50KN~3000KN

Drum capacity

100~1000m

100~1000m

clutch

Hydraulic/handle operated jaw type

Brake

Spring loaded hydraulic release/handle operated type

Power required

4~160kw

3.5kw~132kw

control

Local control& remote control in wheelhouse

option

Length& tension monitoring system, stainless steel lined on drum brake band. Chain stopper.
