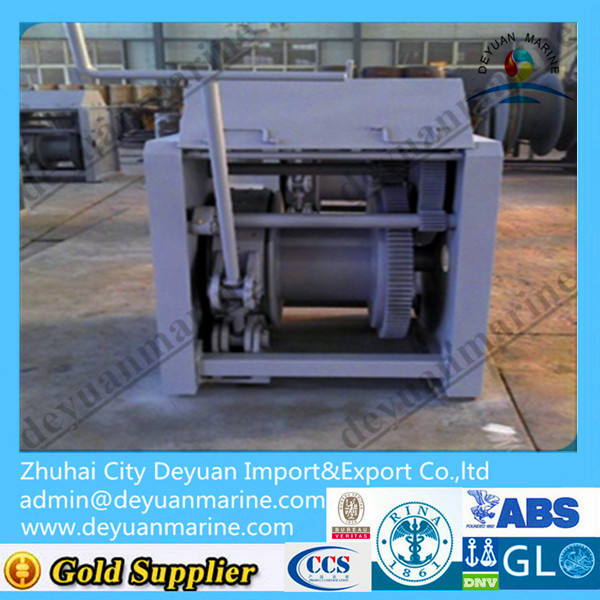

3T Marine Hand-Operated Winch
Mainly used for handing accommodation ladders upon the berthing of the vessel as
well as handling the pilot ladders when the vessels enter the harbor.
The winches are categorized in five specifications:6KN,8KN,10KN,12KN,16KN
3T hand-operated winch
Model Working load(kn) | Supporting load(kn) | Rope dia | power | Rotate speed (r/min) | Duty factor | Hoisting speed | |
6KN | 18kn | Φ8 | 380v,50hz | 1.5kw | 1350 |
30min |
6m/min |
440v,60hz | 1.8kw | 1665 | |||||
8KN | 24kn | Φ9 | 380v,50hz | 2.2kw | 1315 | ||
440v,60hz | 2.5kw | 1625 | |||||
10KN | 30kn | Φ11 | 380v,50hz | 3.7kw | 1350 | ||
440v,60hz | 4.0kw | 1670 | |||||
12KN | 36kn | Φ12 | 380v,50hz | 3.7kw | 1350 | ||
440v,60hz | 4.0kw | 1670 | |||||
16KN | 48kn | Φ13 | 380v,50hz | 5.5kw | 1350 | ||
440v,60hz | 6.3kw | 1655 | |||||
