4 Point Mooring Winch

  • Deyuan Marine

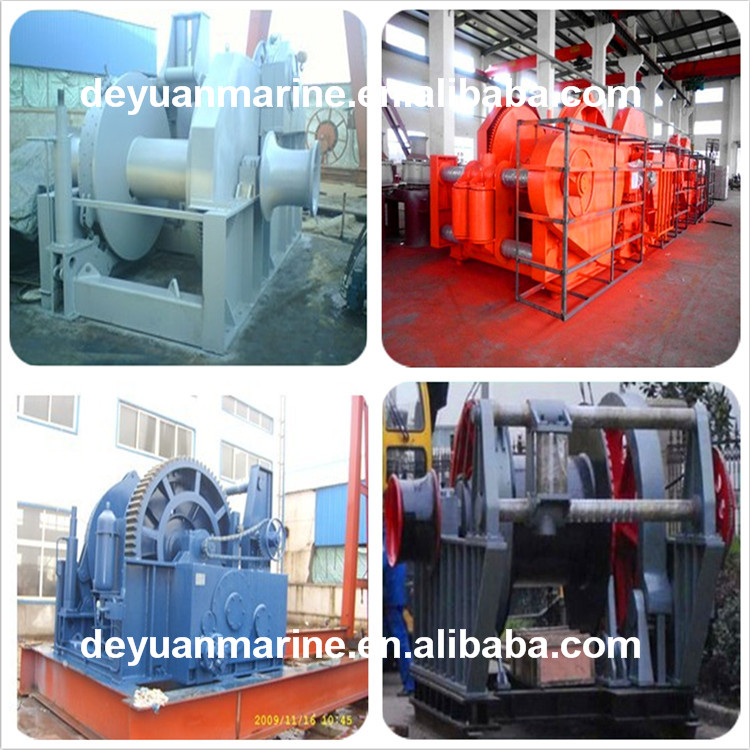

4 Point Mooring Winch

General description

4 point mooring winch is mainly used to the barge mooring system, apply 4 corner point to secure the barge on water,

The working load from 100kn to 1000kn etc, also the spooling device,centra control station and CCTV are available

 for the additional requirements, high quality, powerful working load with good flow rate hydraulic station powered

by diesel engine.It can use to the barge which have no power supply,

easy to installation and can be moveable in any place.

The working technical requirements;

Environment temperature:   45℃

Sea water temperature:     32℃


Ambient pressure:           0.1MPa

Relative humidity:        70%

Classification and rules:   CCS and relevant standards


Certificate:           CCS certificate,factory certificate.

Unit:                 ISO


Main components material of 200kN hyd. mooring winch

(comply with CCS rules):

       Skid and frame:     Q235-A

      Warping end:           Steel casting

Bush:                  Brass

Drum:               Q235-A

Gear:                  Big gear ZG270-500

Pinion 40Cr

Shaft:                    40Cr

Brake band:         Non-asbestos

Test and inspection

Shop test

The winch functional test to be carried out at present of CCS surveyor and factory

Q.C according to test program items before delivery.

If possible, buyer shall be invited to attend the shop test.

Onboard and trial test

Onboard and trial test shall be carried out according to approved test program by CCS and ship owner.
