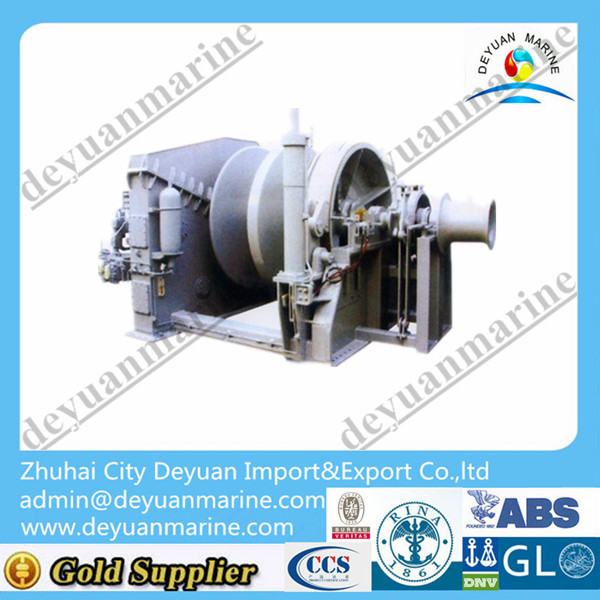

5KN electric mooring winch
1.Rated pull:5KN~20KN.
2.Rate speed:≥12(m/min).
3.Drum capacity:Φ15*100m.
4.Certificate:CCS,GL,ABS,BV,RINA,RS.
Electric mooring winch
1) Drive: Hydraulic
2) Configuration: Horizontal arrangement
3) Rope drum: Steel wire rope
4) Rope speed: Complying with ISO requirements
5) Rate pull (1st layer): 130 Tonnes
5) Clutch: Hydrulic operated
6) Brake: Hydraulic operated band failsafe brake
7) Brake Holding: 1st layer static up to 200Tonnes or complying with ISO/ Classification Society requirement
8) Control: Local/ remote control
Name | Rated pull(kn) | Rate speed (m/min) | Drum capacity (m) | Motor Power (kw) |
5KN electric mooring winch | 5 | ≥12 | Φ15*100 | 3/1.2 |
10KN electric mooring winch | 10 | ≥12 | Φ15*150 | 4.3/1.7 |
20KN electric mooring winch | 20 | ≥12 | Φ15*150 | 8.5/3.5 |
30KN electric mooring winch | 30 | ≥15 | Φ15*150 | 11/11/7.5 |
40KN electric mooring winch | 40 | ≥15 | Φ17.5*150 | 16/16/11 |
50KN electric mooring winch | 50 | ≥15 | Φ20.5*180 | 22/22/16 |
75KN electric mooring winch | 75 | ≥15 | Φ26*200 | 30/30/22 |
80KN electric mooring winch | 80 | ≥12 | Φ26*200 | 30/30/22 |
100KN electric mooring winch | 100 | ≥12 | Φ30*200 | 30/30/22 |
130KN electric mooring winch | 130 | ≥12 | Φ26*200 | 60/60/45 |
160KN electric mooring winch | 160 | ≥12 | Φ30*250 | 60/60/45 |
200KN electric mooring winch | 200 | ≥9.6 | Φ41*250 | 60/60/45 |
250KN electric mooring winch | 250 | ≥9.6 | Φ44.5*250 | 75 |
315KN electric mooring winch | 315 | ≥7.8 | Φ52*250 | 75 |
400KN electric mooring winch | 400 | ≥7.8 | Φ56*250 | 90 |
500KN electric mooring winch | 500 | ≥7.8 | Φ56*250 | 90 |
560KN electric mooring winch | 560 | ≥6 | Φ56*250 | 90 |
600KN electric mooring winch | 600 | ≥6 | Φ56*250 | 110 |
650KN electric mooring winch | 650 | ≥6 | φ56*250 | 110 |
