Anchor handling/towing winch for boat with good quality

Availability:
Inquire Add to Basket

  • Deyuan Marine

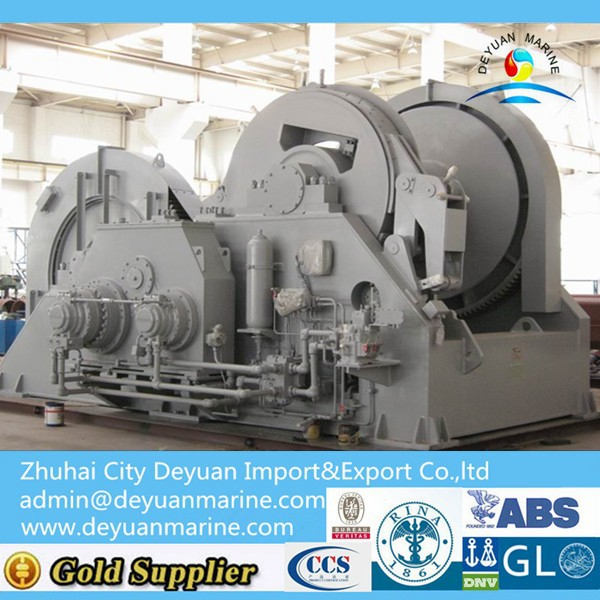

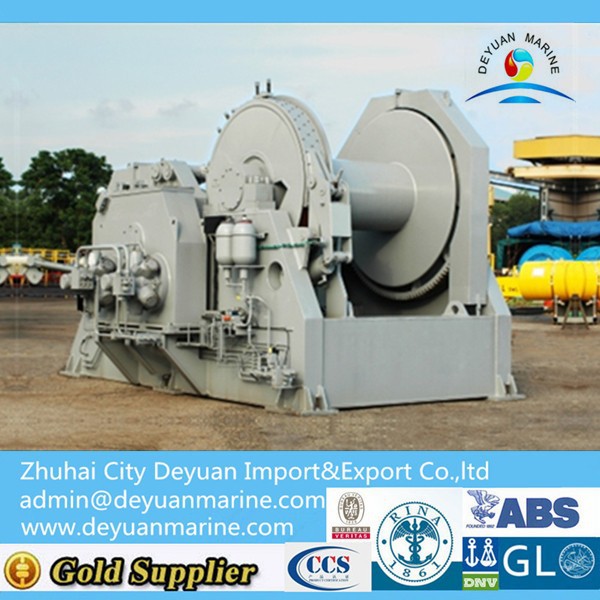

Anchor handling/towing winch

Anchor handling/towing winch features:

*  Duty pull: from 40T to 300T .

*  Brake holding: from 60T to 450T.

*  Dynamic braking feature.

*  Tow control system.

*  Independent drive system.

*  Auto spooling.



Anchor handling/towing winch

1.Duty pull: from 40T to 300T.

2.Brake holding: from 60T to 450T.

3.Dynamic braking feature.

4.Tow control system.

5.Independent drive system.

6.Auto spooling.

Model

AHTW-400-2500

Drive

Electric hydraulic/engine hydraulic

Type

Double drum waterfall configuratoin

Drum load

400KN-2500KN

Drum speed

5~30m/min

Drum brake load

600KN~4500KN

Dia.wire

φ36~76mm

Drum capacity

500~1500m

Dynamic braking

50~100KN *50~100M/MIN

Clutch

Hydraulic operated jaw type

Brake

Spring loaded hydraulic release

Power required

55~300kw

Control

Local control& remote control in wheel house

Option

Length &tension monitoring system. Stainless steel lined on drum brake band. spooling drive. Auto tension
