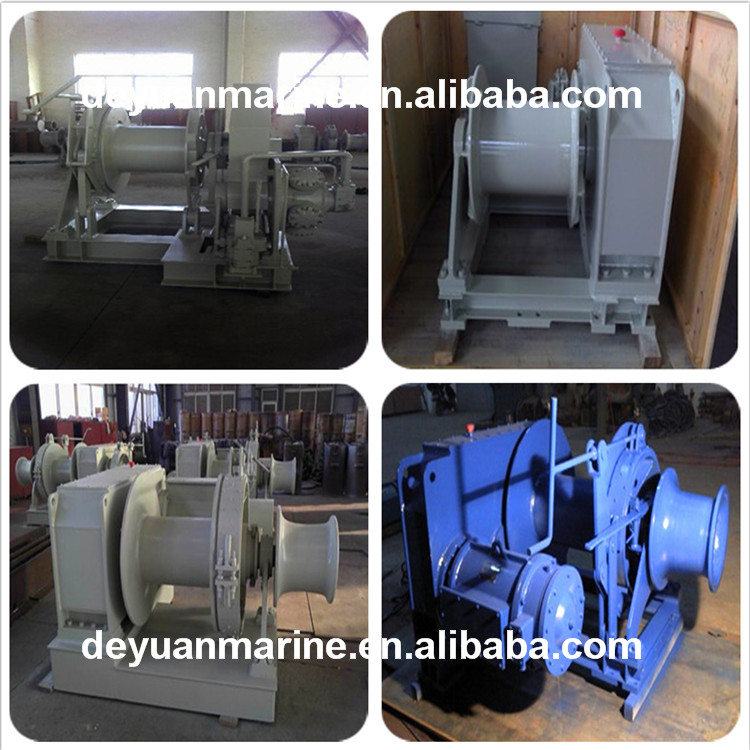

Barge Winch

Barge Winch

General description

Barge winch is mainly used to the barge mooring system, apply to secure the barge on water,

The working load from 100kn to 1000kn etc, also the spooling device,centra control station and

CCTV are available for the additional requirements, high quality, powerful working load with good

flow rate hydraulic station powered by diesel engine. Available for electric power,

hydraulic pump station and diesel engine powre.

The working technical requirements;

Environment temperature: 45℃

Sea water temperature: 32℃

Ambient pressure: 0.1MPa

Relative humidity: 70%

Classification and rules: CCS and relevant standards

Certificate: CCS certificate,factory certificate.

Unit: ISO

Material:

Skid and frame: Q235-A

Warping end: Steel casting

Bush: Brass

Drum: Q235-A

Gear: Big gear ZG270-500

Pinion 40Cr

Shaft: 40Cr

Brake band: Non-asbestos

Test and inspection

Shop test

The winch functional test to be carried out at present of CCS surveyor and factory

Q.C according to test program items before delivery.

If possible, buyer shall be invited to attend the shop test.

Onboard and trial test

Onboard and trial test shall be carried out according to approved test program by CCS and ship owner.
