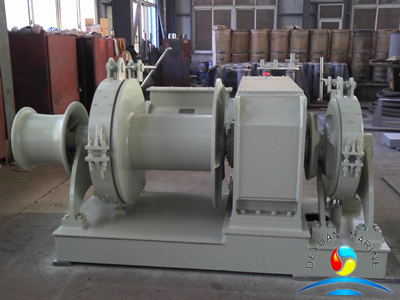

Marine Ship Boat Deck Mooring Hydraulic/Electrical/Hand Windlass Winch
Double Warping Head,Two Gypsies
with CCS, BV, ABS,GL,
Marine Ship Boat Deck Mooring Hydraulic/Electrical/Hand Windlass Winch
Marine Windlass is a machine that restrains and manipulates the anchor chain and/or rope on a boat,
allowing the anchor to be raised and lowered. A notched wheel engages the links of the chain or the rope.
A "trawl windlass" is a similar machine that restrains or manipulates the trawl on a commercial fishing
vessel. The trawl is a sort of big fishing net that is wound on the windlass.
The fishermen either let-out the trawl or heaves-up the trawl during fishing operations.
A brake is provided for control and a windlass is usually powered by an electric or
hydraulic motor operating via a gear train.
Specifications:
1) Drive: Hand/electric / hydraulic
2) Configuration: single in vertical / horizontal arrangement / double gypsies in horizontal
3) Chain size: 16 mm to 127 mm
4) Chain speed: complying with ISO requirements
5) Clutch: manually operated dog clutch
6) Brake: manually and hydraulic operated band brake
7) Control: local control
8) Paint: as per your specifications
Chain Size mm U2 | Gypsies Test Pull(MT) | Gypsies Rated Pull(MT) | Gypsies Brake Holding(Static MT) | Gypsies Centre to Centre mm | Double Warping head Size(dia)mm | Power (kW) Approx. |
12.5 | 1 | 0.7 | 4.2 | 600/800 | 150 | 3 |
14 | 1.3 | 0.9 | 5.1 | 600/800 | 150 | 3.7 |
16 | 1.7 | 1.1 | 6.9 | 800/1000 | 150 | 4 |
17.5 | 2 | 1.3 | 8.2 | 800/1000 | 250 | 5.5 |
19 | 2.4 | 1.6 | 9.7 | 1000/1200 | 300 | 7 |
20.5 | 2.7 | 1.9 | 11.2 | 1000/1200 | 300 | 7.5 |
22 | 3.2 | 2.1 | 12.9 | 1000/1500 | 300 | 11 |
24 | 3.8 | 2.5 | 15.3 | 1000/1500 | 300 | 11 |
26 | 4.4 | 2.9 | 17.9 | 1200/1500 | 300 | 11 |
28 | 5.1 | 3.4 | 20.6 | 1200/1500 | 330 | 15 |
30 | 5.9 | 3.9 | 23.6 | 1200/1500 | 330 | 15 |
32 | 6.6 | 4.4 | 26.7 | 1200/1500 | 330 | 18.5 |
34 | 7.5 | 5 | 30.1 | 1500/2000 | 380 | 18.5 |
36 | 8.4 | 5.6 | 33.6 | 1500/2000 | 380 | 22 |
40 | 10.4 | 6.9 | 41.1 | 1800/2000 | 380 | 30 |
42 | 11.4 | 7.6 | 45.1 | 1800/2000 | 380 | 30 |
44 | 12.8 | 8.4 | 49.5 | 1800/2000 | 380 | 30 |
