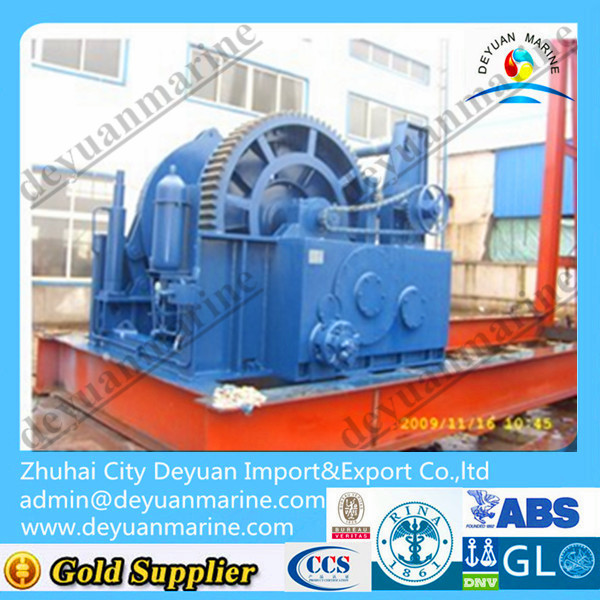

Electric towing winch with good quality

Electric towing winch with good quality

Towing winch consists of e-motor, gear-driven device, drum, warping end, spooling device,

clutch unit, and brake unit, it has simple structure enable easy operation.

Power: Hydraulic motor.

Driver: Exposed gear.

Electric towing winch

Towing winch consists of e-motor, gear-driven device, drum, warping end, spooling device,

clutch unit, and brake unit, it has simple structure enable easy operation.

Power: Hydraulic motor

Driver: Exposed gear

Drum load (KN)	Rate speed (m/min)	Holding load (KN)	Breaking load (mm)	Drum Dia. (mm)	Drum capacity (φmm*m)
160	7.5	470	426	500	500
250	7.5	710	645	600	600
400	7.5	1120	1010	720	750
630	7.5	1600	1450	900	850
800	5	1870	1700	950	1000
1000	5	2030	1840	1000	1000
1250	5	2340	2120	1100	1200
1600	5	3000	2720	1200	1200
2000	5	3840	3483	1300	1500
