HDPE-Dredge-Pipe

  • China (Mainland)

  • Sinopec

  • HDPE 7000f

  • Raw Granules Resins

  • wooden case

  • 20 days


Product Description



HDPE Pipe is used for Sand delivery pipe, mud discharge pipe, dredge pipe, oil delivery pipe, mine pipe,water pipe.HDPE is a high degree of crystallinity, non-polar thermoplastic resin, the characteristics are non-toxic, tasteless,and odorless.

HDPE Dredge Pipes Advantage

bended under water,and excellent anti-wave.

The concave-convex is within 30°of area, can be connected directly on land.

Good wear-resistance, anti-aging, strong corrosion resistance, anti-uv, long service time.

Flange connection,smooth outer and inner wall,higher transmission effifiency than steel pipe 20% to 30%.

Either on land or water for using,total engineering cost is low, high efficiency, safer and more convenient.

HDPE Dredge Pipe Specification



OD OF PIPE DN mm SDR26 SDR21 SDR17 SDR13.6 SDR11
0.6 0.8 1 1.25 1.6
140 6 7 8 10 13
160 7.5 8 10 12 15
180 7.5 9 11 13 17
200 8 10 12 15 18
225 9 11 13 17 21
250 10 12 15 18 23
280 11 13 17 21 25
315 12 15 19 23 29
330 13 16 20 24 30
350 14 17 21 26 32
400 15 19 24 29 36
425 15 20 25 33 42
450 17 21 27 34 45
500 19 23 30 37 48
530 20 24 31 38 50
560 21 26 33 41 51
600 22 28 35 43 54
630 24 30 37 46 57
660 26 31 38 48 59
710 27 33 42 52
800 30 38 47 58
850 32 40 50

900 34 42 53

950 36 45 56

1000 38 47 59

1050 40 49 61

1100 42 51 63

1150 44 53 66



Sand Delivery Pipe

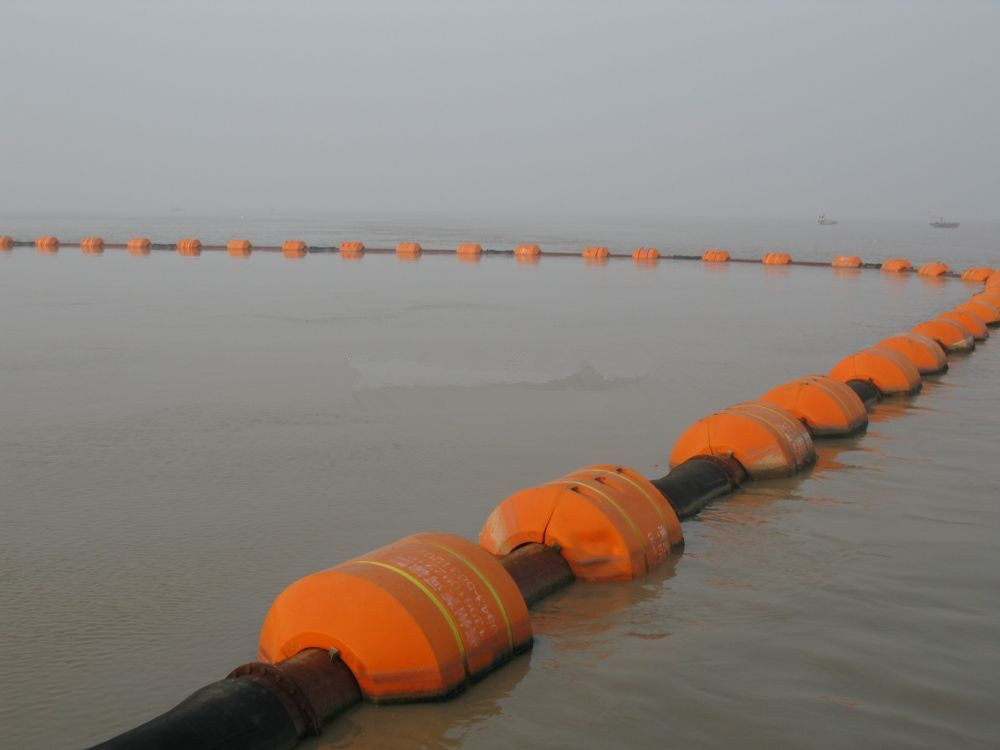

HDPE Dredge Pipe

Dredge Pipe

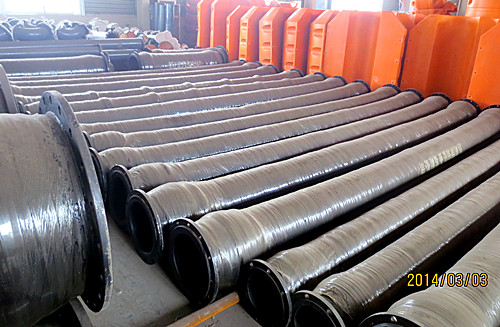

HDPE-Dredge-Pipe2

Contrast Of Wear Resistance



Sandblast contrast test(SIO2)

30% SIO2Mud scour contrast test

Material

Volume decreases

Material

Volume decreases

PE80

0.25

45 # steel

25

PE100

0.15

Cast Iron Pipe

15

HDPE Pipe

0.13

HDPE Pipe

8



Pressure Standard



NO.

Items

Requirements

1

20℃ to quiet hydraulic strength (hoop stress 12.4Mpa, 100h)

No burst, No leak

2

80℃ to quiet hydraulic strength (hoop stress 5.5Mpa, 165h)

No burst, No leak

3

80℃ to static strength (hoop stress 5.0Mpa, 1000h)

No burst, No leak

4

Breaking elongation, %

≥500

5

Longitudinal shrinkage (110℃), %

≤2.2

6

Oxidation induced time (200℃), min

≥20

7

Weather resistance 1) (Pipe accumulative accept 3.5 GJ/m2 after aging energy

80℃ to quiet hydraulic strength (hoop stress 5.5Mpa, 165h)

No burst, No leak

Fracture Shrink Rate %

≥500

Oxidation induced time (200℃) , min

≥10



Performance Compared between HDPE Pipe and Other Pipe



No. Items HDPE Pipe Ordinary PE Pipe Nylon 66 Steel Pipe
1 Molecular two hundred thousand --one million and two hundred thousand twenty thousand-- two hundred thousand

2 density 0.940 g/m³ 0.945 g/m³ 1.13-1.15 g/m³ 7.8 g/m³
3 impact strength 23℃ 500 J/m 300 J/m 59-108 J/m
4 impact strength -40℃ 80 J/m 50 J/m <100 J/m
5 tensile breaking strength <28 Mpa <25 Mpa <61 Mpa
6 longitudinal contraction rate of return 2.20% 3.00%

7 breaking elongation ≥550% ≥300% 60-3000%
8 wear rate 190% 210% 100% 100%
9 wear coefficient 0.3-0.5 mm³ 0.4-0.6 mm³ 0.4 mm³ 0.58 mm³
10 resistant to corrosion good good good bad
11 encrustment NO YES YES YES
12 The inside surface of weld Have swelled Have swelled Have swelled
