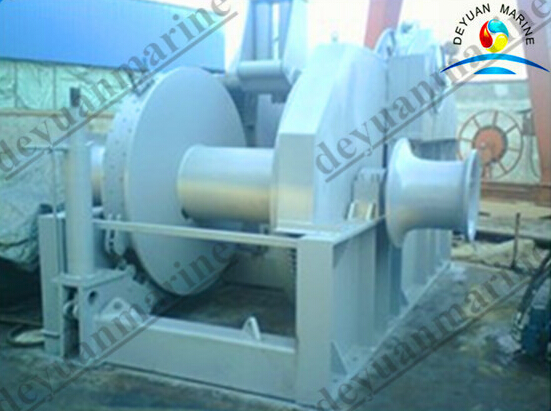

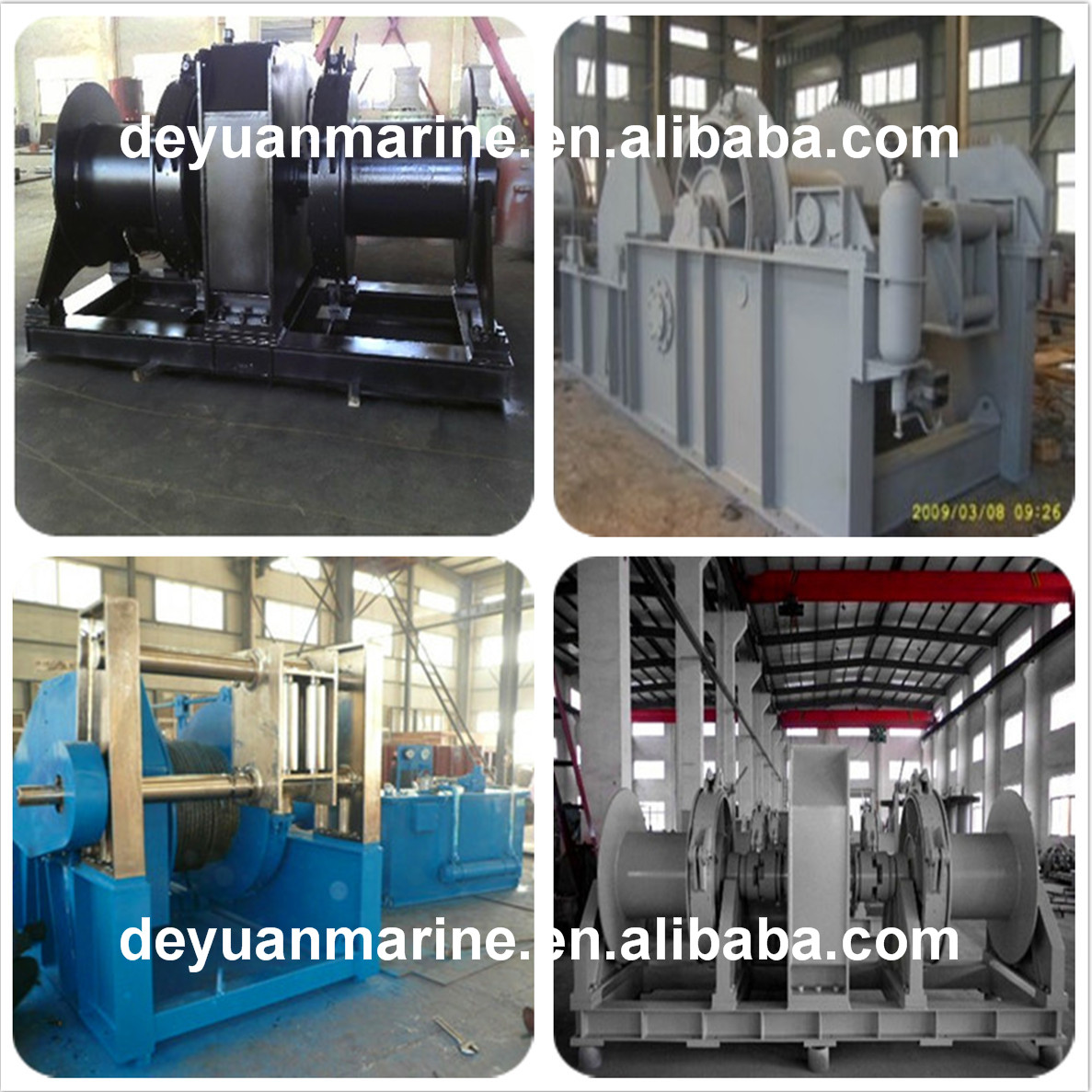

HW Series Hydraulic winch is composed of various distributors with single or double overcentre valve and
high pressure pilot line, BJM hydraulic motors, piece and wet hydraulic brake, planetary gearbox,
drum and frame etc. It can be operated smoothly with only pump and inverting valve equipped.
The hydraulic system can be greatly simplified and reliability of transmission apparatus can be greatly improved
as the winches leave its own valve pump. Some technical problems such as “Shaking with no load” and
“prior dropping before lifting” can be successfully solved with our HW series hydraulic winches,
Which make the winch run smoothly when lifting and dropping. Besides it has the features of high starting and working
efficiencies. Lower waste of energy and low noise level, good appearance, compact structure and good economy.
It can be widely used in various kinds of lifting equipment of railroad, vehicles, marine, mining and harbor etc.
HT3-1000A
HT: Hydraulic winch
3: Modulus Gear of Planetary Gearbox
1000: Hydraulic winches first layer force of drum
A: Drum support model (A: Single point support, B: Double point support)
HW3-1000A | 1000kgf | 700ml/rev | 16MPA | 2.1MPA | 48-60 m/min | 10mm | 4 | 70 |
HW3-2000B | 2000kgf | 1500ml/rev | 16MPA | 2.1MPA | 18-20 m/min | 14mm | 4 | 100 |
