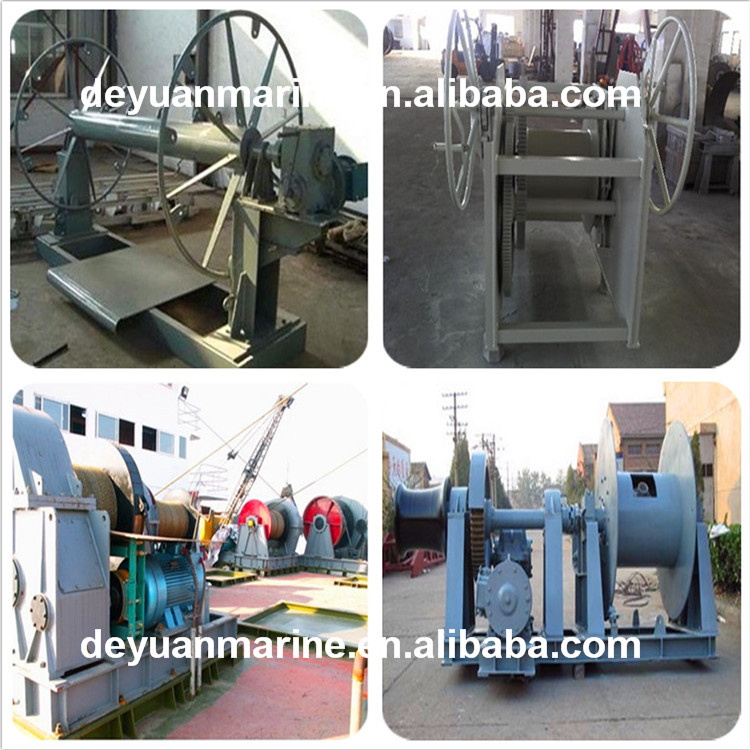

20KN electric mooring winch
20KN electric mooring winch
1.20KN electric mooring winch.
2.Rated pull:20KN.
3.Rate speed:≥12(m/min).
4.Drum capacity:Φ15*100m.
5.Certificate:CCS,GL,ABS,BV,RINA,
Hydraulic single gypsy mooring winch
Type | Hawser drum | Power (kw) | Dimension(mm) | ||||
Load (kn) | Speed (m/min) | Rope size (mm*m) | L | B | H | ||
DY30 | 30 | 15 | 50*150 | 18.5 | 1965 | 1230 | 760 |
DY40 | 40 | 15 | 50*150 | 18.5 | 1965 | 1230 | 760 |
DY50 | 50 | 15 | 60*150 | 22 | 2140 | 1300 | 785 |
DY60 | 60 | 15 | 70*160 | 30 | 2295 | 1350 | 810 |
DY70 | 70 | 15 | 70*160 | 30 | 2295 | 1350 | 810 |
DY80 | 80 | 15 | 80*180 | 37 | 2540 | 1450 | 910 |
DY100 | 100 | 15 | 80*180 | 45 | 2540 | 1450 | 910 |
20KN electric mooring winch
20KN electric mooring winch
1.20KN electric mooring winch.
2.Rated pull:20KN.
3.Rate speed:≥12(m/min).
4.Drum capacity:Φ15*100m.
5.Certificate:CCS,GL,ABS,BV,RINA,
Hydraulic single gypsy mooring winch
Type | Hawser drum | Power (kw) | Dimension(mm) | ||||
Load (kn) | Speed (m/min) | Rope size (mm*m) | L | B | H | ||
DY30 | 30 | 15 | 50*150 | 18.5 | 1965 | 1230 | 760 |
DY40 | 40 | 15 | 50*150 | 18.5 | 1965 | 1230 | 760 |
DY50 | 50 | 15 | 60*150 | 22 | 2140 | 1300 | 785 |
DY60 | 60 | 15 | 70*160 | 30 | 2295 | 1350 | 810 |
DY70 | 70 | 15 | 70*160 | 30 | 2295 | 1350 | 810 |
DY80 | 80 | 15 | 80*180 | 37 | 2540 | 1450 | 910 |
DY100 | 100 | 15 | 80*180 | 45 | 2540 | 1450 | 910 |
