Deyuan Marine

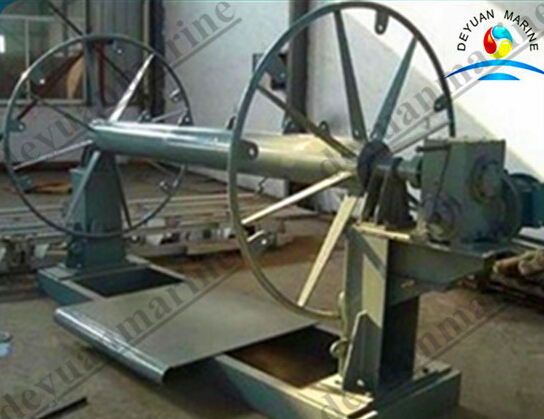

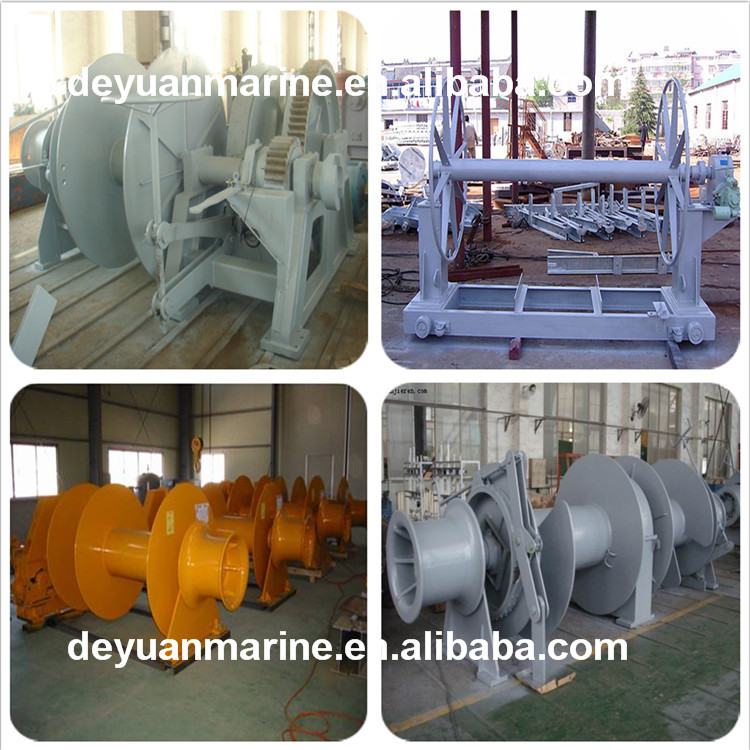

Manual Winch is designed simple and functional. Pull capacity from 1-160kn.Mounted on the manual winch handle of rotary actuator stop (ratchet wheel and pawl), can keep the weight in the location of the need. Assembly or ascension weight with manual winch should also set up the handle and brake. Manual winch generally used in the small weight, establishment conditions with poor or no power.
Type | Pull | Ratio | Hand length(MM) | Drum diam(MM) | Wire diam(MM) |
1T | 10KN | 3.23 | 210 | 120 | 6 |
3T | 30KN | 3.83 | 230 | 150 | 8 |
5T | 50KN | 4.84 | 320 | 180 | 10 |
8T | 80KN | 4.83 | 350 | 250 | 14 |
10T | 100KN | 4.83 | 360 | 280 | 14 |
12T | 120KN | 4.86 | 360 | 300 | 15 |
16T | 160KN | 5.11 | 380 | 350 | 16 |
