DEYUAN

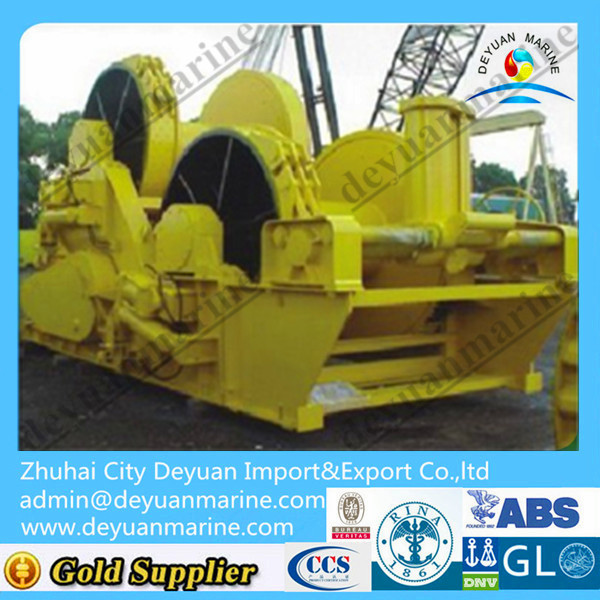

Marine Aft Towing Winch
Marine Aft Towing Winch
1.Product:tugger winches/tugger capstans.
2.Capacity:1T to 30T capacity tugger winches.
3.Capacity:0.5T to 20T tugger capstans.
4.Certificate: CCS or ABS Certificate.
Marine Aft Towing Winch
Tugger winches/capstans | |||||
Model | HTW-10~300 | ETW-10~300 | HC-5~200 | EC-5~200 | |
Drive | Hydraulic or electric | Hydraulic or electric | |||
Type | Single or double drum | vertical | |||
Rated load | 10KN~300KN | 5KN~200KN | |||
Rated speed | 10~30m/min | 10~20m/min | |||
Holding load | 20KN~500KN | ||||
Dia.wire | φ13~42mm | φ13~32mm | |||
Drum capacity | 50~500m | ||||
Clutch | Hydraulic/handle operated jaw type | ||||
brake | Spring loaded hydraulic release/handle operated type | ||||
Power required | 4~90kw | 4~90kw | 4~75kw | 4~75kw | |
control | Local control& remote control in wheelhouse | ||||
option | Length &tension monitoring system | ||||
Marine Aft Towing Winch
Marine Aft Towing Winch
1.Product:tugger winches/tugger capstans.
2.Capacity:1T to 30T capacity tugger winches.
3.Capacity:0.5T to 20T tugger capstans.
4.Certificate: CCS or ABS Certificate.
Marine Aft Towing Winch
Tugger winches/capstans | |||||
Model | HTW-10~300 | ETW-10~300 | HC-5~200 | EC-5~200 | |
Drive | Hydraulic or electric | Hydraulic or electric | |||
Type | Single or double drum | vertical | |||
Rated load | 10KN~300KN | 5KN~200KN | |||
Rated speed | 10~30m/min | 10~20m/min | |||
Holding load | 20KN~500KN | ||||
Dia.wire | φ13~42mm | φ13~32mm | |||
Drum capacity | 50~500m | ||||
Clutch | Hydraulic/handle operated jaw type | ||||
brake | Spring loaded hydraulic release/handle operated type | ||||
Power required | 4~90kw | 4~90kw | 4~75kw | 4~75kw | |
control | Local control& remote control in wheelhouse | ||||
option | Length &tension monitoring system | ||||
