Marine Towing Winch

Availability:
  • Deyuan Marine

Hydraulic Towing Winch

General description

Wild range towing capacity can fit different vessel for towing operation with electric or

hydraulic power driven by electric or diesel engine. High quality, easy operation, compact design,

smooth operation for the lines without twisting.

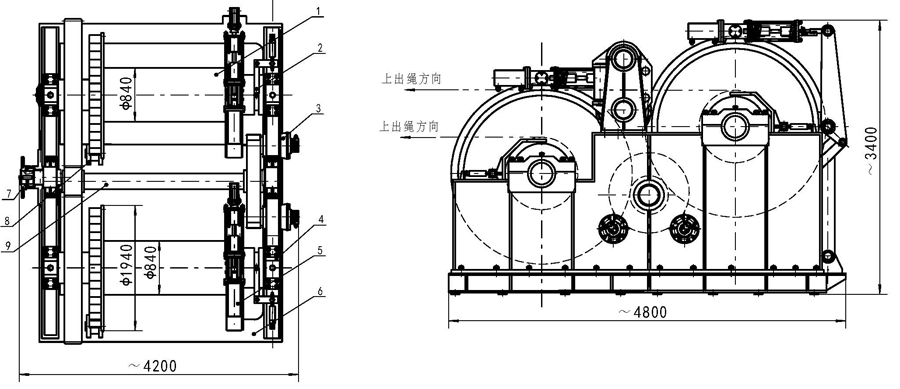

Installation drawing



1.Main shaft 2.The clutch device 3.Hyd.motor 4.Shoulder 5.Brake 6.Foundation 7.Rope device 8.Detent 9.Intermediate shaft device

Diesel engine drawing



1.Switch box 2.Coupling 3.Oil tank 4.Diesel engine 5.Valve block 6.Air cleaner

7.Oil filter 8.Relief valve 9.Pressure switch 10.Pressure metre 11.Oil level and temp metre

 12.Bolt 13.Gasket 14.Bolt 15.Gasket 16.Plunger pump 17.Plunger pump 18.Change valve

19.Relief valve 20.One-way valve 21.Check valve 22.Close valve 23.butterfly valve 24.Coupling

Main Specification

Description
Rated Pull Rated Speed Drum Capacity Ele-Motor Power Hydr-Motor Power
(kN) (m/min) (m) (kW) (kW)
5kN Electric Towing Winch 5 ≥12 Ø8×100 3/1.2 -
10kN Electric(Hydraulic) Towing Winch 10 ≥12 Ø10×150 4.3/1.7 5.5
20kN Electric(Hydraulic) Towing Winch 20 ≥12 Ø15×150 8.5/3.5 11
30kN Electric(Hydraulic)Towing Winch 30 ≥15 Ø17×150 11/11/7.5 15
40kN Electric(Hydraulic)Towing Winch 40 ≥15 Ø18×150 16/16/11 22
50kN Electric(Hydraulic)Towing Winch 50 ≥15 Ø20.5×180 22/22/16 30
75kN Electric(Hydraulic)Towing Winch 75 ≥15 Ø26×200 30/30/22 45
80kN Electric(Hydraulic)Towing Winch 80 ≥15 Ø26×200 30/30/22 45
100kN Electric(Hydraulic)Towing Winch 100 ≥15 Ø30×200 45/45/30 45
125kN Electric(Hydraulic)Towing Winch 125 ≥15 Ø30×200 45/45/30 75
160kN Electric(Hydraulic)Towing Winch 160 ≥15 Ø32×250 60/60/45 75
200kN Electric(Hydraulic)Towing Winch 200 ≥9.6 Ø41×250 60/60/45 75
250kN Electric(Hydraulic)Towing Winch 250 ≥9.6 Ø44.5×250 60/60/45 90
315kN Electric(Hydraulic)Towing Winch 315 ≥7.8 Ø52×250 60/60/45 90
400kN Electric(Hydraulic)Towing Winch 400 ≥7.8 Ø56×250 85/85/64 110
450kN Electric(Hydraulic)Towing Winch 450 ≥7.8 Ø56×250 85/85/64 110
1500kN Electric(Hydraulic)Towing Winch 1500 ≥4 Ø95×250 150/150/72 200
2000kN Electric(Hydraulic)Towing Winch 2000 ≥4 Ø100×250 180/180/135

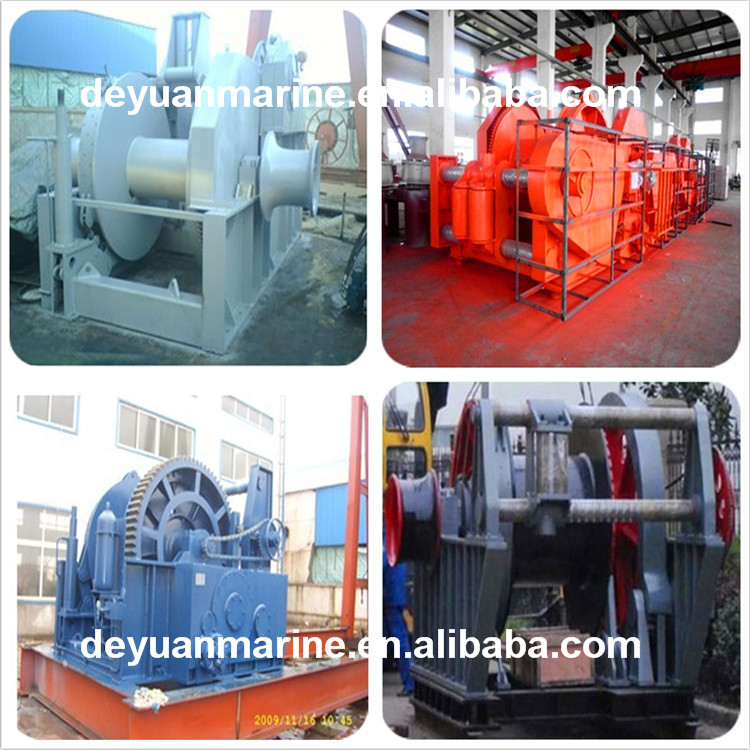

绞车05
