Towing Winch

  • Deyuan Marine

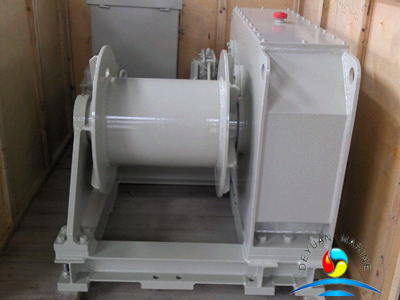

Towing Winch

General description

The Towing winch is widely used in tug boat, the powerful working load are used for the cargo shifting during the voyage, the auto spooling device is mainly for the wire rope control to avoid any fouling and twisting, keep the towing winch in good and smooth operation. The best choice for the coast water, domestic water for towing the barge like loaded with sand,core and other bulk cargo.

Two types towing winch:

Waterfall and parallel type are available for the tug boat

Main parameter

For the 500kn towing winch

Rated pull: 500kn

Nominal speed: 0-20m/min

Cable Diameter: 60mm

Capacity cable:300m

Holding load:1200 kn

Warping end load: 100kn

Working pressure: 16Mpa

Flow rate: 960L/min

We can adjust the working load and drum capacity according to customers requirements
