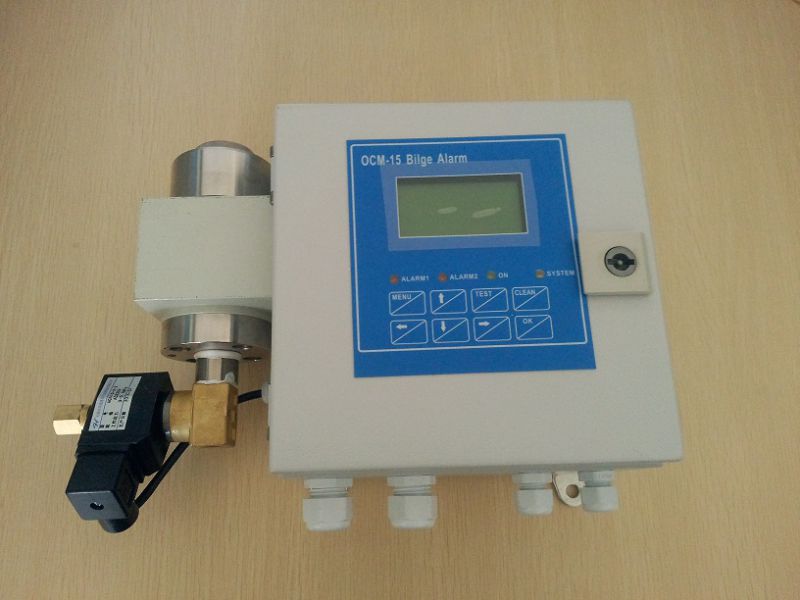

15ppm Bilge Water Alarm (Mini Type) Ship Oil Discharge Monitoring and Control System

15PPM Bilge Water Alarm (Mini Type) ship oil discharge monitoring and control system

15ppm Bilge Water Alarm Main performance indicators:

1) Measuring range: 0-30ppm (display range 0-80ppm)
2) Measurement precision: (15ppm alarm) ± 5ppm (meet the IMO standard)
3) Display type: LED digital tube
4) indication: 4 red LED
5) 2-way alarm relay
6) Rated capacity of relay contact 250VAC 3A (non-emotional)
7) Response time ≤ 5 seconds
8) Output signal 4-20mA
9) Environment temperature 0 - 55 Celsius degree
10) Bilge water Alarm Relative humidity≤ 93%
11) Sample liquid temperature 1 - 55 Celsius degree
12) Sample liquid pressure 0.1-0.6MPa
13) Sample liquid flow of 0.1-4L / min
14) Protection class IP55
15) Main power supply 220/110VAC 50Hz/60Hz
16) Power Consumption ≤ 20VA
17) Overall dimension 400mm × 300mm × 160mm
18) Meet the standard IMO. Res. MEPC. 107 (49) resolution
More 15ppm bilge water alarm can be offered, pls contact us for more details
